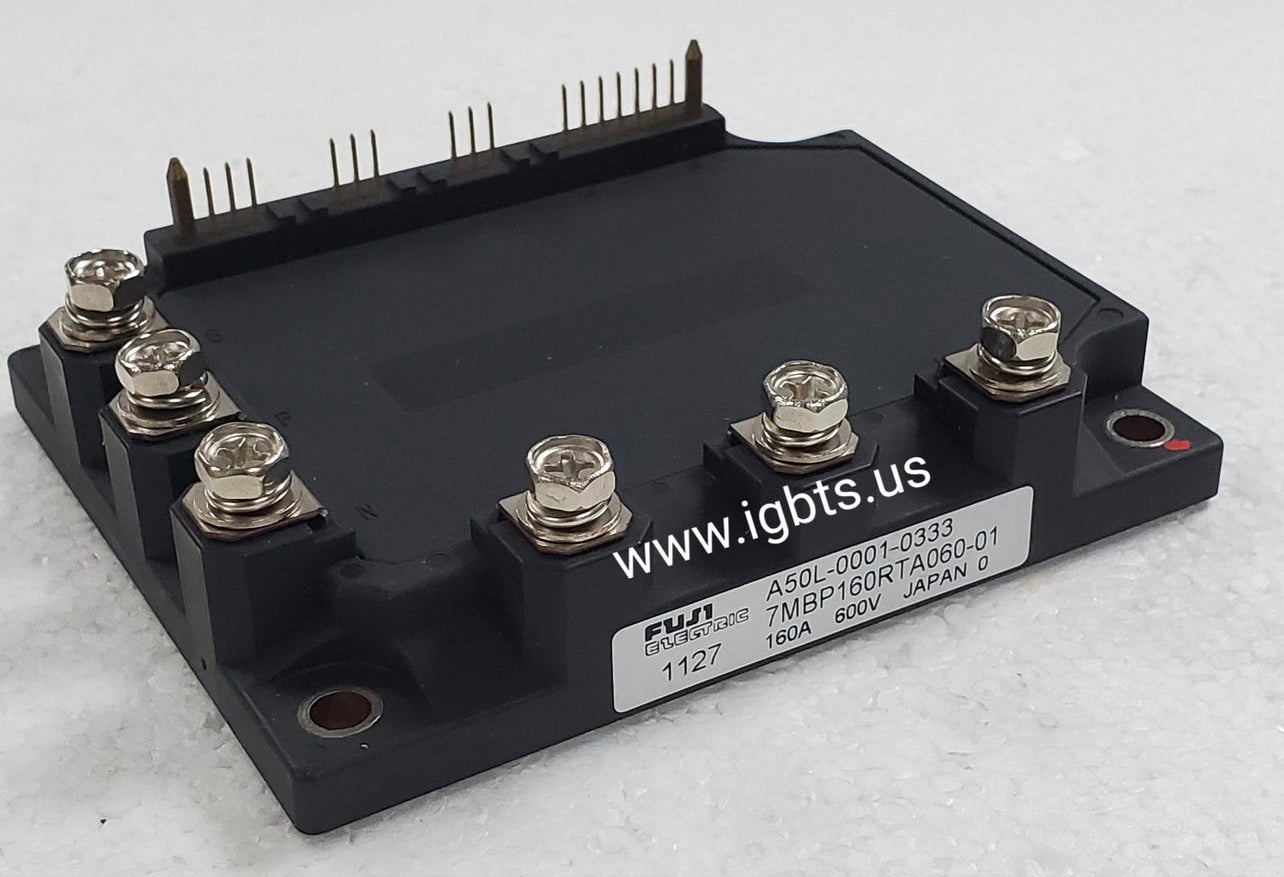

The 7MBP160RTA060-01 is a Fuji Electric RTA-series 6-in-1 IGBT power module rated for 160A continuous collector current and 600V blocking voltage. Built on Fuji's proven trench-gate IGBT technology, this module integrates six IGBTs and six freewheeling diodes in a compact, isolated base package optimized for low switching losses and high thermal performance. It is engineered to meet the demands of industrial power conversion where reliability, efficiency, and thermal stability are non-negotiable requirements.

This module is widely deployed in three-phase AC variable frequency drives (VFDs), servo amplifiers, UPS inverters, solar inverters, and industrial welding power supplies. Its 600V rating and 160A current handling make it a strong fit for medium-power drive systems in manufacturing automation, HVAC compressor control, pump and fan drives, and regenerative braking systems. OEMs and MRO teams across industries rely on the 7MBP160RTA060-01 as a core switching element where thermal cycling and continuous load duty are everyday operating conditions.

Quick Reference: 7MBP160RTA060-01

Key Features of the 7MBP160RTA060-01:

• 160A collector current rating with 600V CE voltage — optimized for medium-power three-phase inverter topologies
• Integrated 6-in-1 IGBT bridge with co-packaged freewheeling diodes, reducing external component count and simplifying PCB layout
• Fuji trench-gate IGBT cell structure delivers low V_CE(sat) for reduced conduction losses and improved overall efficiency
• Isolated copper base plate construction provides electrical isolation between the switching elements and heatsink mounting surface
• Low thermal resistance junction-to-case (R_th(j-c)) supports high-power-density designs with standard forced-air or liquid cooling
• Compatible with standard Fuji 7MBP-series footprint, enabling direct drop-in replacement in existing drive and inverter platforms

With a published factory lead time of 99 weeks, the 7MBP160RTA060-01 represents exactly the type of long-lead-time component that can stall production lines and delay field repairs when not proactively stocked. Fuji Electric IGBT modules in this series are deeply embedded in installed drive and inverter platforms worldwide, meaning demand for replacements consistently outpaces availability through standard distribution channels. Procurement teams managing MRO inventories for VFD-dependent equipment cannot afford to wait nearly two years for factory replenishment when a module fails in the field.

ATI Accurate Technology stocks the 7MBP160RTA060-01 as new OEM product and ships same-day on orders placed before 5PM EST from our Palmetto, Florida facility. Whether you need a single replacement unit or volume quantities for a maintenance stockpile, our team is ready to help. Contact us at 239-734-7566 or sales@igbts.us for pricing, lead times, and volume discount availability. We specialize in hard-to-find and long-lead-time power semiconductors — this is what we do.
