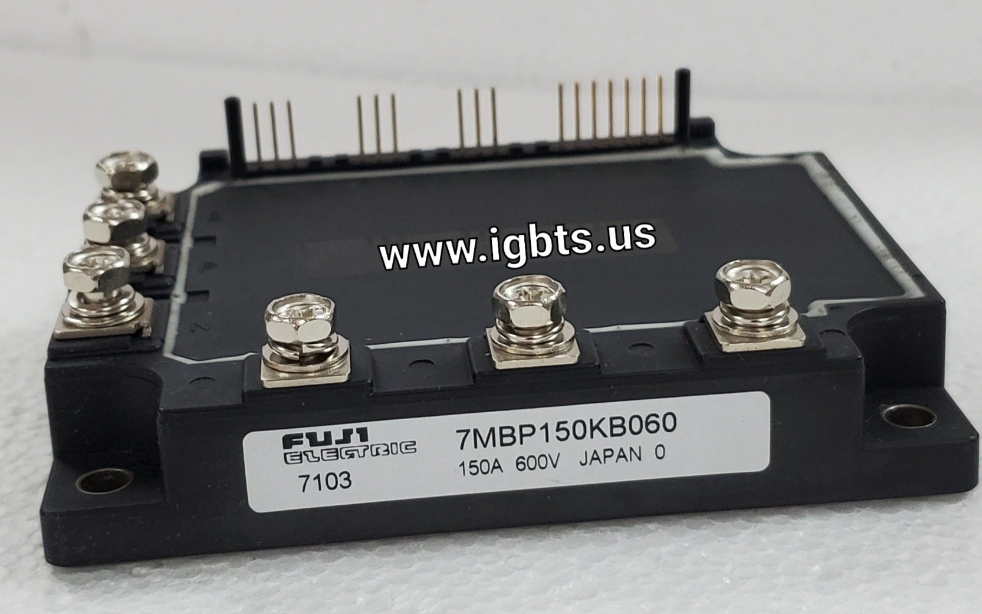

The 7MBP150KB060 is a high-current, 7-pack IGBT module from Fuji Electric, rated at 150 amperes and 600 volts. This module integrates seven individual IGBT elements — typically configured as six inverter IGBTs plus one brake chopper IGBT — into a single compact package. This integration simplifies PCB layout, reduces assembly complexity, and improves reliability in demanding power conversion systems. Fuji's KB-series IGBT modules are widely respected for their low saturation voltage, fast switching characteristics, and robust short-circuit withstand capability, making them a trusted choice for industrial power electronics designers worldwide.

The 7MBP150KB060 is ideally suited for a broad range of industrial and commercial applications. Primary uses include AC variable speed motor drives, servo amplifiers, UPS systems, solar inverters, and general-purpose three-phase inverter designs. Its 600V blocking voltage and 150A continuous collector current rating make it appropriate for medium-power industrial equipment where efficiency, switching speed, and thermal performance are critical. The built-in freewheeling diodes further reduce external component count and system complexity.

Quick Reference: 7MBP150KB060

Key Features:

• 150A continuous collector current with 600V blocking voltage for medium-power inverter designs
• 7-pack configuration integrates six inverter IGBTs plus one brake chopper in a single module
• Low V(CE)sat for reduced conduction losses and improved system efficiency
• Fast switching speed minimizes switching losses across a wide operating range
• Integrated freewheeling diodes eliminate the need for external recovery diodes
• Short-circuit withstand capability enhances system protection and reliability

Sourcing the 7MBP150KB060 can be challenging due to Fuji's product lifecycle management and global supply chain constraints. ATI Accurate Technology specializes in exactly these situations — maintaining inventory of current, long-lead-time, and hard-to-find Fuji IGBT modules to keep your production lines running without delay. Whether you need a single replacement unit for a field repair or a larger quantity for an OEM build, ATI is equipped to fulfill your order quickly and accurately.

ATI Accurate Technology is your trusted source for the 7MBP150KB060 and the full range of Fuji IGBT modules. Located in Palmetto, Florida, ATI serves customers across North America and internationally with same-day shipping on in-stock orders placed before 5PM EST. Contact our power semiconductor specialists today at 239-734-7566 or email sales@igbts.us for pricing, availability, and technical support.
