Name: 6RI100P-160-51-FUJI
Brand: FUJI
SKU: 6RI100P-160-51-FUJI
Price: 132.00 USD
Availability: InStock

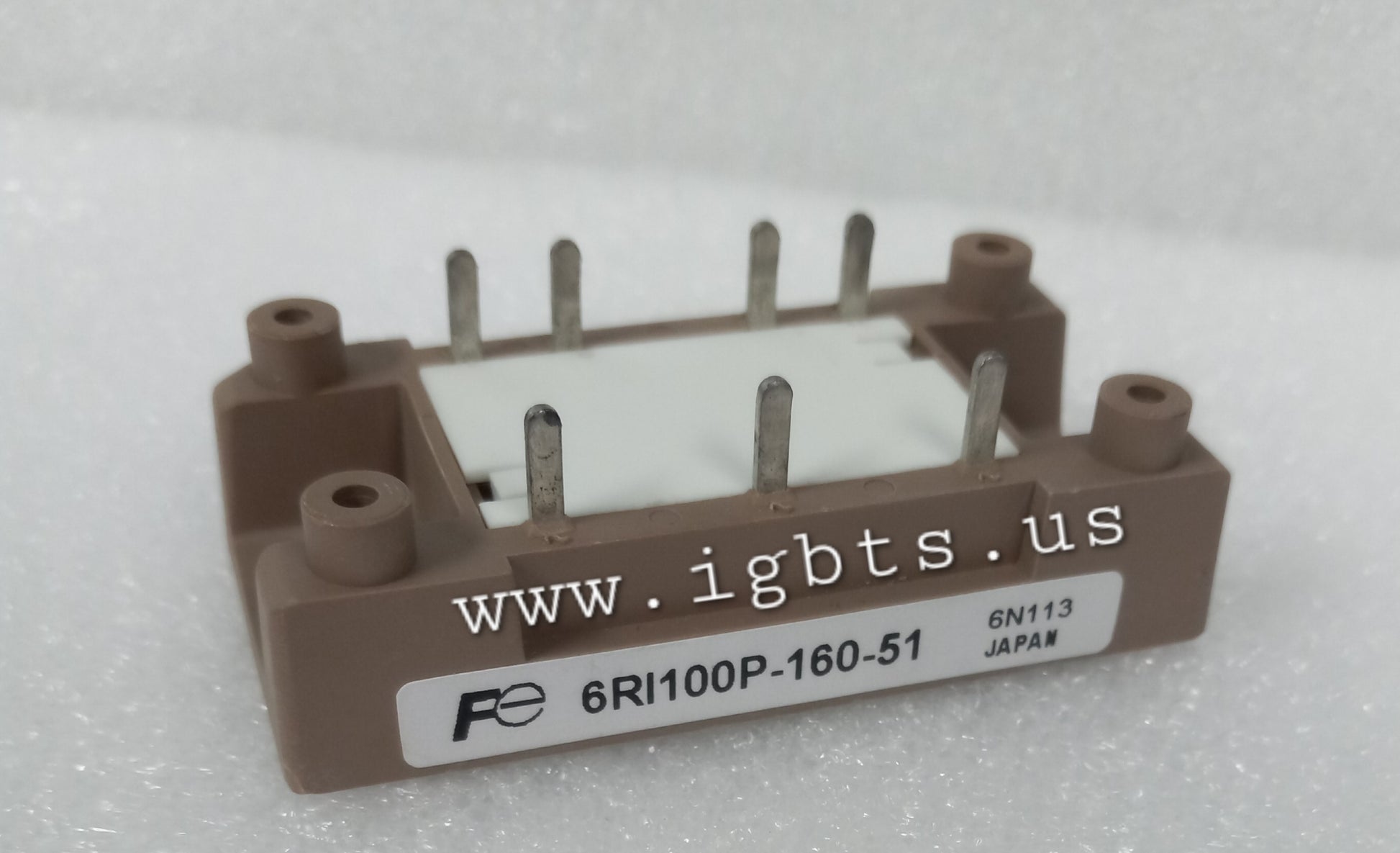

{"id":4328841543731,"title":"6RI100P-160-51-FUJI","handle":"6ri100p-160-51-fuji","description":"\u003cp\u003eThe Fuji 6RI100P-160-51 is a three-phase, 6-pulse rectifier module rated for 100A average output current and 1600V repetitive peak reverse voltage. Configured as a full-wave three-phase bridge, this module delivers well-filtered DC bus voltage from three-phase AC input with low ripple and high efficiency. The sealed module construction integrates all six rectifier diodes in a single isolated package, offering a thermally optimized footprint suitable for direct heatsink mounting. It is manufactured to Fuji Electric's established quality standards for industrial-grade power semiconductor modules.\u003c\/p\u003e\u003cp\u003eThe 6RI100P-160-51 is widely deployed in demanding industrial environments where reliable AC-to-DC rectification is critical. Common applications include variable frequency drives (VFDs) and AC servo drives, industrial UPS and battery charging systems, resistance and MIG\/TIG welding power supplies, DC motor drive front-end stages, and industrial power conditioning equipment. The 1600V voltage class provides meaningful derating margin in 690V AC three-phase systems, making this module a preferred choice for engineers designing for long service life under transient-rich grid conditions.\u003c\/p\u003e\u003cp\u003e\u003cstrong\u003eQuick Reference: 6RI100P-160-51\u003c\/strong\u003e\u003c\/p\u003e\u003ctable\u003e\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePart Number\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e6RI100P-160-51\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eManufacturer\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFuji Electric\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eType\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3-Phase 6-Pulse Rectifier Bridge Module\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCurrent Rating\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e100A (Average Output)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVoltage Rating\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1600V (VRRM)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAvailability\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eIn Stock — Same-Day Shipping\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCondition\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNew OEM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\u003c\/table\u003e\u003cp\u003e\u003cstrong\u003eKey Features of the 6RI100P-160-51:\u003c\/strong\u003e\u003c\/p\u003e\u003cul\u003e\n\u003cli\u003e6-pulse three-phase full-wave bridge topology for low DC bus ripple and high power quality\u003c\/li\u003e\n\u003cli\u003e1600V VRRM rating provides robust voltage margin for 480V and 690V three-phase AC input applications\u003c\/li\u003e\n\u003cli\u003e100A average output current supports medium-power drive and rectifier front-end designs\u003c\/li\u003e\n\u003cli\u003eIsolated baseplate construction enables direct heatsink mounting with standard thermal interface materials\u003c\/li\u003e\n\u003cli\u003eCompact single-package integration of six diodes reduces PCB\/busbar complexity and assembly labor\u003c\/li\u003e\n\u003cli\u003eManufactured to Fuji Electric's industrial reliability standards, compatible with high-cycle and continuous-duty operation\u003c\/li\u003e\n\u003c\/ul\u003e\u003cp\u003eWith a current factory lead time of 99 weeks, the 6RI100P-160-51 is effectively unavailable through standard distribution channels for any project requiring near-term delivery. For maintenance teams managing unplanned downtime or procurement professionals building safety stock for critical drive systems, waiting nearly two years for new production is not a viable option. ATI specializes in exactly this scenario — sourcing and stocking hard-to-find, long-lead-time, and legacy Fuji power modules so that engineers can execute repairs and production schedules without being held hostage to extended factory queues.\u003c\/p\u003e\u003cp\u003eATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, stocking IGBTs, rectifier modules, thyristors, and diodes from leading manufacturers including Fuji Electric. We ship same-day on orders placed before 5PM EST, and our team is ready to support volume pricing requests for MRO and OEM quantities. Contact us today at 239-734-7566 or sales@igbts.us to confirm availability, request a quote, or discuss application requirements for the 6RI100P-160-51.\u003c\/p\u003e","published_at":"2019-11-03T12:30:39-05:00","created_at":"2019-11-03T12:30:39-05:00","vendor":"FUJI","type":"","tags":["Palmetto Inventory"],"price":13200,"price_min":13200,"price_max":13200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":31090156798003,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"6RI100P-160-51-FUJI","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"6RI100P-160-51-FUJI","public_title":null,"options":["Default Title"],"price":13200,"weight":227,"compare_at_price":null,"inventory_quantity":6,"inventory_management":"shopify","inventory_policy":"continue","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/igbts.us\/cdn\/shop\/files\/20230807_170304.jpg?v=1691442613"],"featured_image":"\/\/igbts.us\/cdn\/shop\/files\/20230807_170304.jpg?v=1691442613","options":["Title"],"media":[{"alt":null,"id":22384955162675,"position":1,"preview_image":{"aspect_ratio":1.642,"height":1657,"width":2721,"src":"\/\/igbts.us\/cdn\/shop\/files\/20230807_170304.jpg?v=1691442613"},"aspect_ratio":1.642,"height":1657,"media_type":"image","src":"\/\/igbts.us\/cdn\/shop\/files\/20230807_170304.jpg?v=1691442613","width":2721}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eThe Fuji 6RI100P-160-51 is a three-phase, 6-pulse rectifier module rated for 100A average output current and 1600V repetitive peak reverse voltage. Configured as a full-wave three-phase bridge, this module delivers well-filtered DC bus voltage from three-phase AC input with low ripple and high efficiency. The sealed module construction integrates all six rectifier diodes in a single isolated package, offering a thermally optimized footprint suitable for direct heatsink mounting. It is manufactured to Fuji Electric's established quality standards for industrial-grade power semiconductor modules.\u003c\/p\u003e\u003cp\u003eThe 6RI100P-160-51 is widely deployed in demanding industrial environments where reliable AC-to-DC rectification is critical. Common applications include variable frequency drives (VFDs) and AC servo drives, industrial UPS and battery charging systems, resistance and MIG\/TIG welding power supplies, DC motor drive front-end stages, and industrial power conditioning equipment. The 1600V voltage class provides meaningful derating margin in 690V AC three-phase systems, making this module a preferred choice for engineers designing for long service life under transient-rich grid conditions.\u003c\/p\u003e\u003cp\u003e\u003cstrong\u003eQuick Reference: 6RI100P-160-51\u003c\/strong\u003e\u003c\/p\u003e\u003ctable\u003e\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePart Number\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e6RI100P-160-51\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eManufacturer\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eFuji Electric\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eType\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3-Phase 6-Pulse Rectifier Bridge Module\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCurrent Rating\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e100A (Average Output)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVoltage Rating\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1600V (VRRM)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAvailability\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eIn Stock — Same-Day Shipping\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCondition\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNew OEM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\u003c\/table\u003e\u003cp\u003e\u003cstrong\u003eKey Features of the 6RI100P-160-51:\u003c\/strong\u003e\u003c\/p\u003e\u003cul\u003e\n\u003cli\u003e6-pulse three-phase full-wave bridge topology for low DC bus ripple and high power quality\u003c\/li\u003e\n\u003cli\u003e1600V VRRM rating provides robust voltage margin for 480V and 690V three-phase AC input applications\u003c\/li\u003e\n\u003cli\u003e100A average output current supports medium-power drive and rectifier front-end designs\u003c\/li\u003e\n\u003cli\u003eIsolated baseplate construction enables direct heatsink mounting with standard thermal interface materials\u003c\/li\u003e\n\u003cli\u003eCompact single-package integration of six diodes reduces PCB\/busbar complexity and assembly labor\u003c\/li\u003e\n\u003cli\u003eManufactured to Fuji Electric's industrial reliability standards, compatible with high-cycle and continuous-duty operation\u003c\/li\u003e\n\u003c\/ul\u003e\u003cp\u003eWith a current factory lead time of 99 weeks, the 6RI100P-160-51 is effectively unavailable through standard distribution channels for any project requiring near-term delivery. For maintenance teams managing unplanned downtime or procurement professionals building safety stock for critical drive systems, waiting nearly two years for new production is not a viable option. ATI specializes in exactly this scenario — sourcing and stocking hard-to-find, long-lead-time, and legacy Fuji power modules so that engineers can execute repairs and production schedules without being held hostage to extended factory queues.\u003c\/p\u003e\u003cp\u003eATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, stocking IGBTs, rectifier modules, thyristors, and diodes from leading manufacturers including Fuji Electric. We ship same-day on orders placed before 5PM EST, and our team is ready to support volume pricing requests for MRO and OEM quantities. Contact us today at 239-734-7566 or sales@igbts.us to confirm availability, request a quote, or discuss application requirements for the 6RI100P-160-51.\u003c\/p\u003e"}

Item added to your cart

Description

Country/region

Language

Part Number	6RI100P-160-51
Manufacturer	Fuji Electric
Type	3-Phase 6-Pulse Rectifier Bridge Module
Current Rating	100A (Average Output)
Voltage Rating	1600V (VRRM)
Availability	In Stock — Same-Day Shipping
Condition	New OEM
