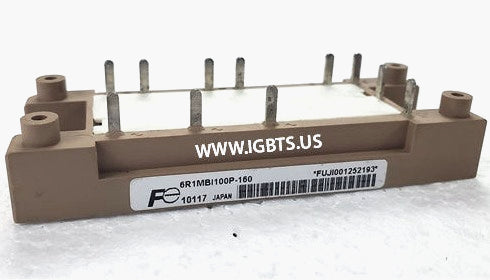

The Fuji 6R1MBI100P-160 is a high-voltage 6-pack IGBT module combining six insulated gate bipolar transistors in a single industry-standard package, rated for 100A continuous collector current and 1600V collector-emitter blocking voltage. Designed to meet the rigorous demands of three-phase power conversion, this module integrates a full inverter bridge configuration that reduces component count, simplifies thermal management, and improves system reliability. It is manufactured by Fuji Electric, a globally recognized leader in power semiconductor technology, and is built to deliver consistent switching characteristics across a wide operating temperature range.

The 6R1MBI100P-160 is well suited for industrial variable frequency drives (VFDs), medium-voltage inverters, regenerative converters, UPS systems, and traction equipment where high blocking voltage and low switching losses are critical. Its 1600V rating provides the necessary headroom for applications operating from 690V AC bus architectures, including heavy industrial motor drives, crane and hoist controls, and grid-tied power conditioning systems. Engineers specifying for harsh or high-cycle environments will find the module's robust construction and Fuji's proven IGBT cell technology a reliable foundation for long service life.

Quick Reference: 6R1MBI100P-160

Key Features of the 6R1MBI100P-160:

• 1600V VCES rating provides robust voltage margin for 690V AC three-phase bus applications and transient overvoltage protection
• 100A continuous collector current supports substantial load demands in industrial motor drive and converter designs
• Six-switch (3-phase full bridge) integrated topology eliminates discrete component assembly and reduces parasitic inductance in the power loop
• Low VCE(sat) characteristics minimize conduction losses and reduce heatsink thermal requirements at full load
• Isolated baseplate construction enables direct mounting to heatsinks without additional insulating hardware, simplifying thermal interface design
• Compatible with standard Fuji gate drive recommendations, allowing drop-in replacement in existing drive platforms without control circuit redesign

With a current factory lead time of 99 weeks on new production orders, procurement teams relying on standard supply channels face significant exposure to production stoppages and project delays. The 6R1MBI100P-160 is a long-lead, limited-availability component that frequently appears on approved vendor lists for legacy and active drive platforms alike. Whether you are managing a planned maintenance inventory, responding to an unscheduled field failure, or building safety stock for a multi-site rollout, waiting on factory allocation is not a viable strategy. ATI Accurate Technology maintains stock of hard-to-find Fuji modules specifically to bridge these supply gaps.

ATI Accurate Technology is based in Palmetto, Florida and specializes in power semiconductors including IGBTs, thyristors, diodes, and rectifier modules — with particular depth in obsolete, allocated, and long-lead parts. Orders placed before 5PM EST ship same day. Contact our team for volume pricing, cross-reference assistance, or application questions: call 239-734-7566 or email sales@igbts.us. Visit igbts.us to check live inventory and request a quote.
