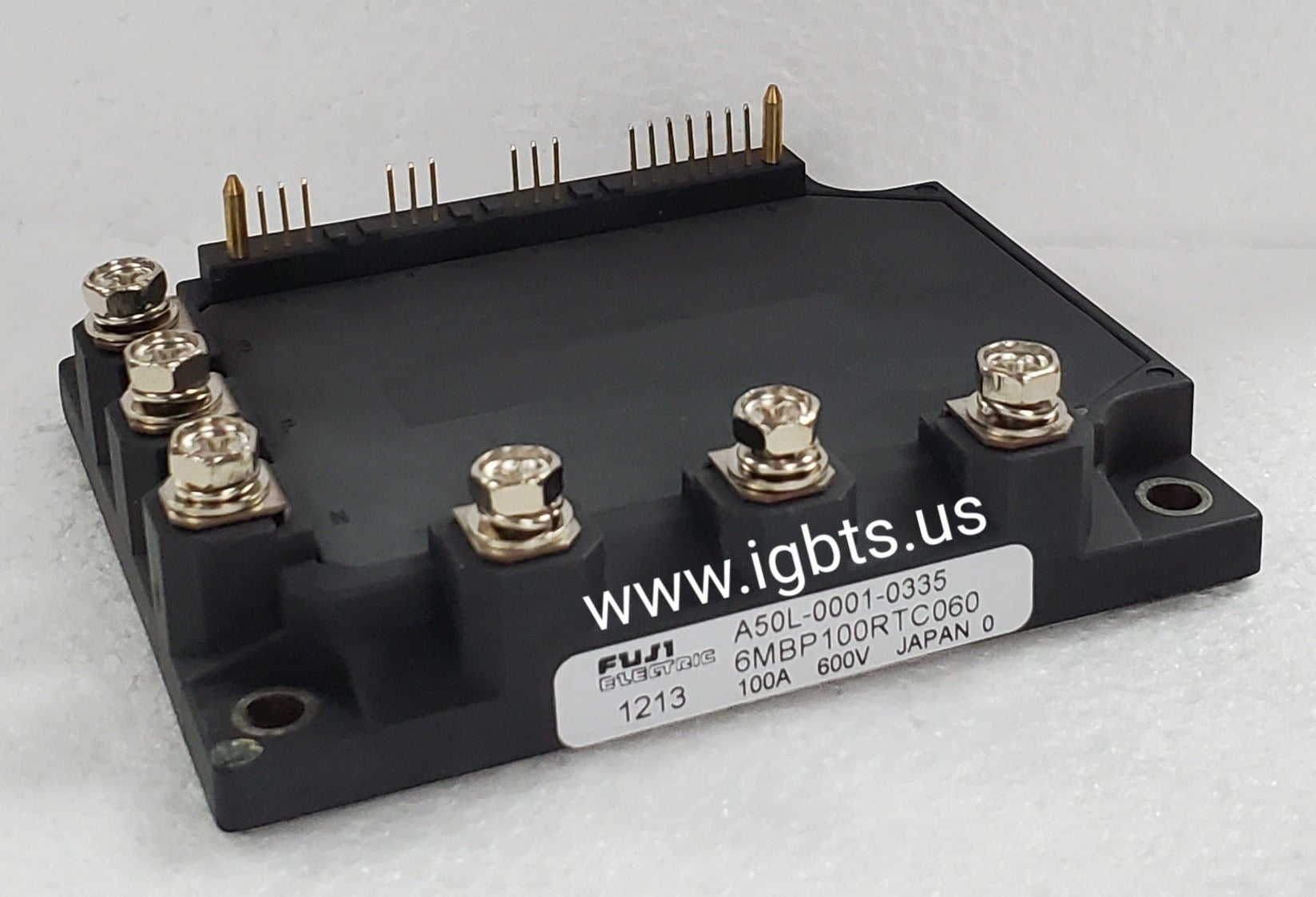

The Fuji 6MBP100RTC060 is a six-pack Intelligent Power Module (IPM) combining 100A, 600V IGBT chips with integrated gate drive, overcurrent protection, short-circuit protection, undervoltage lockout, and temperature monitoring into a single compact package. This level of integration eliminates the need for discrete gate resistors, isolated drive supplies per switch, and external fault logic in many designs, making it a preferred choice for engineers optimizing power density and system reliability in demanding industrial environments. The RTC-series architecture is engineered for low switching losses and robust thermal performance.

The 6MBP100RTC060 is widely deployed in AC motor drives (variable frequency drives), servo amplifiers, uninterruptible power supplies, and industrial inverters where a 3-phase bridge topology is required in the 11–22kW range. Its integrated protection functions are particularly valued in conveyor systems, pump and fan controls, CNC spindle drives, and robotics applications where nuisance tripping and unplanned downtime carry significant operational costs. The module's standardized footprint also supports drop-in replacement in legacy equipment still running Fuji RTC-series IPMs on aging production lines.

Quick Reference: 6MBP100RTC060

Key Features of the 6MBP100RTC060:

• Six-pack (3-phase bridge) IGBT configuration rated 100A / 600V for direct 3-phase inverter implementation
• Integrated gate drive circuitry with isolated power supply inputs per phase, reducing external BOM complexity
• Built-in protection: overcurrent (OC), short-circuit (SC), undervoltage lockout (UVLO), and overtemperature (OT) with fault output signal
• Low V_CE(sat) RTC-series IGBT chips optimized for reduced conduction losses at industrial switching frequencies (typically 5–15kHz)
• Isolated aluminum base / transfer-molded package designed for direct heatsink mounting with standard thermal interface materials
• Compatible with 3.3V and 5V logic-level control interfaces, simplifying DSP and microcontroller-based drive designs

With a published factory lead time of 99 weeks for new production, the 6MBP100RTC060 presents a serious procurement challenge for both OEM manufacturers and MRO teams managing field failures. Fuji RTC-series IPMs are also approaching end-of-life status in some product lines, meaning spot-market availability from stocking distributors is the only reliable path for many buyers. Waiting on factory allocation is not a viable option when a drive failure idles production equipment. Securing verified stock from a knowledgeable distributor is the correct strategy for both emergency and planned purchasing scenarios.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, maintaining ready stock of hard-to-find and long-lead-time modules including the 6MBP100RTC060. Orders placed before 5PM EST ship same day. Volume pricing is available for OEM builds, MRO stocking orders, and repair depots. Contact our team directly at 239-734-7566 or sales@igbts.us for availability confirmation, datasheets, and quotes.
