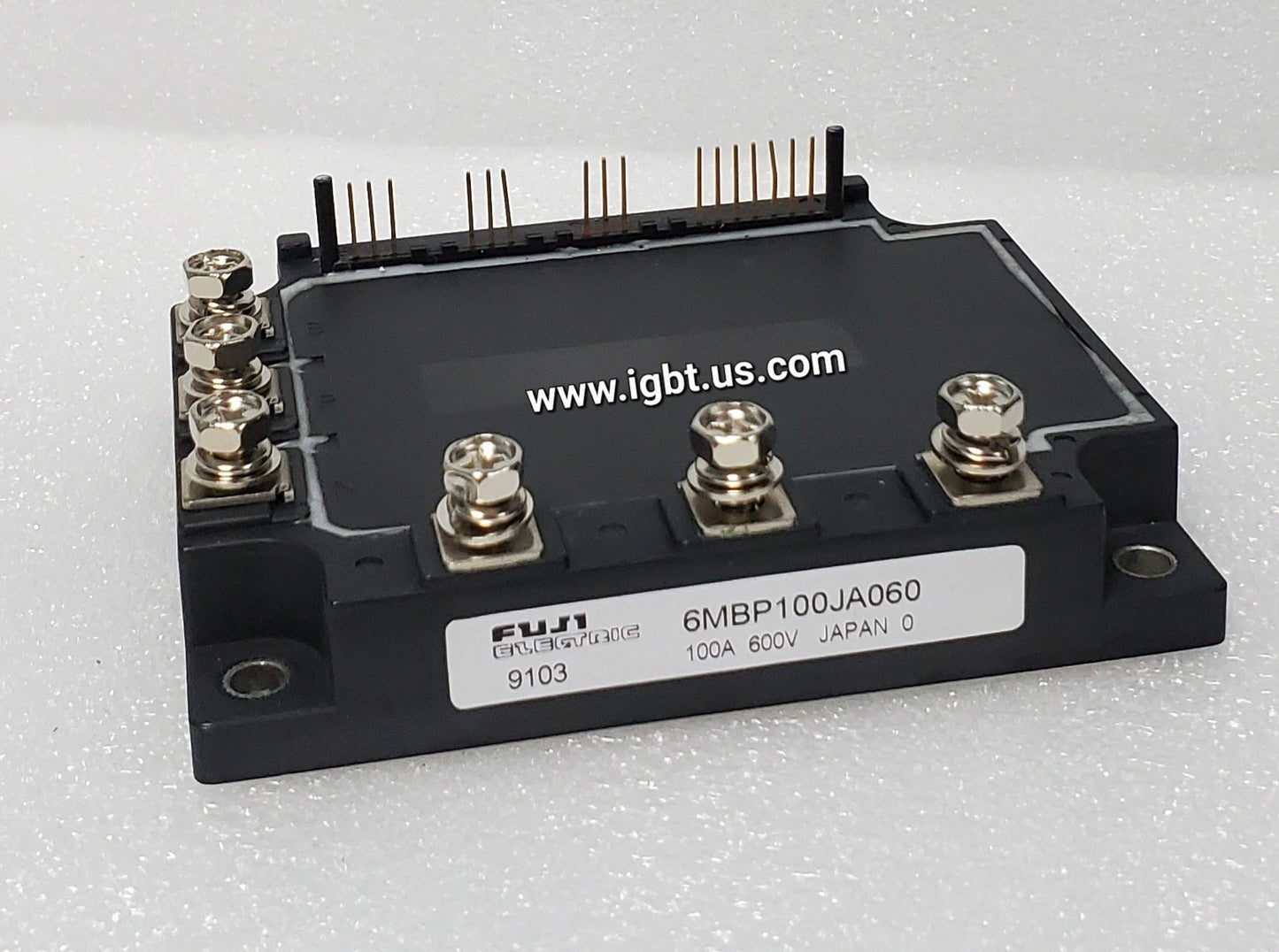

The 6MBP100JA060 is a high-performance six-pack IGBT module manufactured by Fuji Electric, rated for 100 amperes of collector current and a 600-volt blocking voltage. This all-in-one module integrates six IGBT switches along with six built-in freewheeling diodes into a single compact package, dramatically simplifying inverter circuit design and reducing PCB footprint. The JA-series platform from Fuji Electric is well-regarded in the power electronics industry for its low saturation voltage, excellent switching characteristics, and robust thermal performance under demanding industrial conditions.

The 6MBP100JA060 is ideally suited for a broad range of three-phase power conversion applications. Its six-pack topology makes it a natural fit for variable frequency drives (VFDs), AC servo motor drives, uninterruptible power supplies (UPS), solar inverters, and industrial automation equipment. The module's balanced switching characteristics and optimized gate-drive compatibility make it a preferred solution for engineers designing high-efficiency power conversion systems in the 600V class.

Quick Reference: 6MBP100JA060

Key Features:

• Six-pack IGBT topology with integrated freewheeling diodes for complete three-phase inverter bridge in one module
• 100A continuous collector current with 600V collector-emitter voltage rating
• Low VCE(sat) for reduced conduction losses and improved system efficiency
• Optimized for high-frequency switching with fast, soft-recovery diodes
• Compact, industry-standard package with isolated base plate for simplified thermal management
• Compatible with standard Fuji gate drive circuits and widely supported in legacy and modern industrial drive designs

Finding reliable stock of the 6MBP100JA060 can be challenging through standard distribution channels, particularly for maintenance, repair, and overhaul (MRO) applications or production line restocking. ATI Accurate Technology specializes in exactly these scenarios, maintaining inventory of current, long-lead-time, and hard-to-find power semiconductor components including Fuji IGBT modules across multiple voltage and current ratings. Whether you need a single unit for an emergency repair or a larger quantity for ongoing production, ATI is equipped to fulfill your order quickly and accurately.

ATI Accurate Technology is your trusted source for the 6MBP100JA060 and the full range of Fuji Electric IGBT modules. Located in Palmetto, Florida, ATI serves customers across the United States and internationally with same-day shipping on orders received before 5PM EST. Contact our power semiconductor specialists today at 239-734-7566 or email sales@igbts.us for pricing, availability, and technical support.
