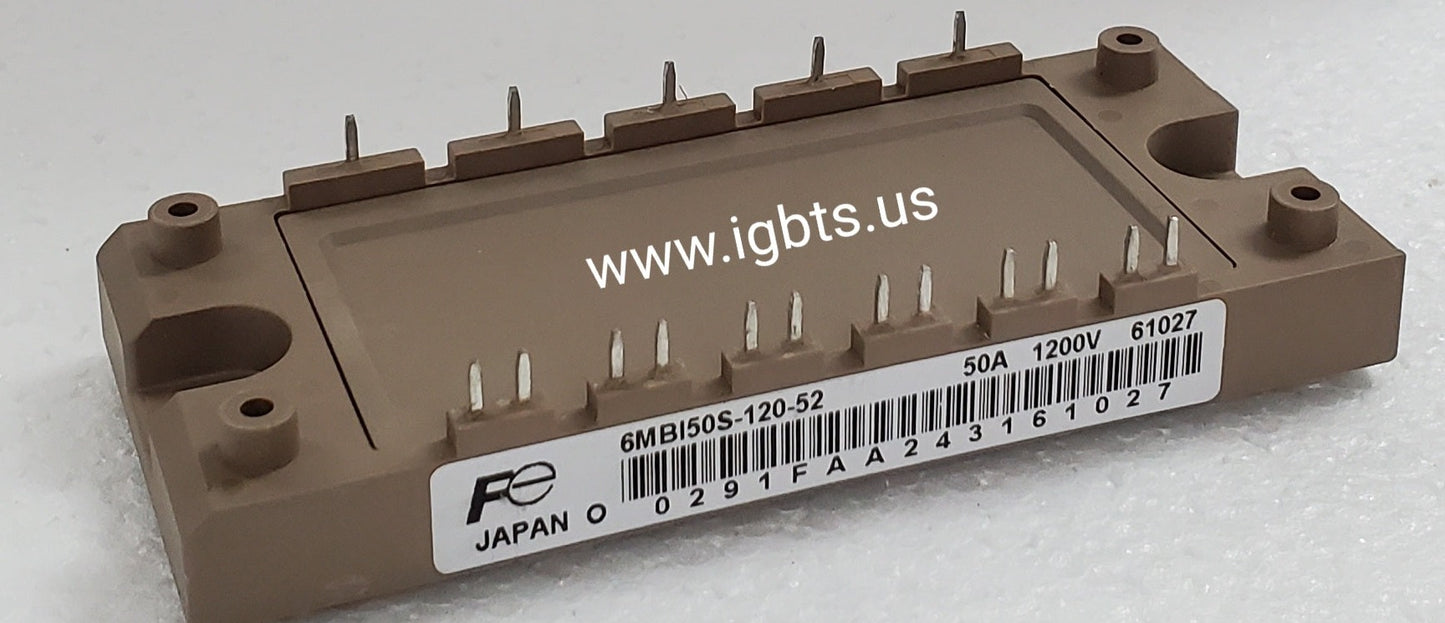

The Fuji 6MBI50S-120-52 is a 1200V, 50A six-pack IGBT module from Fuji Electric's S-series lineup, integrating six IGBT switches and associated freewheeling diodes into a single compact package. This configuration eliminates the need for discrete component assembly, simplifying PCB layout and thermal management in high-frequency switching designs. The module is engineered for low saturation voltage and fast switching characteristics, making it well suited for demanding industrial power conversion applications where efficiency and thermal stability are critical design requirements.

The 6MBI50S-120-52 is widely deployed in AC motor drives, servo amplifiers, uninterruptible power supplies, and three-phase PWM inverters across industries including manufacturing automation, HVAC systems, material handling, and renewable energy conversion. Its six-pack topology is particularly valued in variable frequency drive (VFD) designs where a complete inverter bridge must be realized in minimal board space. OEM equipment manufacturers and MRO teams servicing legacy drives frequently source this module as a direct replacement to restore equipment uptime quickly.

Quick Reference: 6MBI50S-120-52

Key Features of the 6MBI50S-120-52:

• 1200V collector-emitter breakdown voltage with 50A continuous collector current rating for robust margin in high-power inverter designs
• Six-pack full-bridge IGBT topology with integrated freewheeling diodes, enabling complete three-phase inverter stages in a single module footprint
• Low V_CE(sat) characteristic reduces conduction losses and thermal stress at rated current, extending module service life in continuous-duty applications
• Fast switching speed supports high PWM carrier frequencies required in precision motor control and servo drive systems
• Isolated base plate construction provides electrical isolation between the power circuit and heatsink, simplifying thermal interface design and meeting safety clearance requirements
• S-series package format compatible with standard Fuji mounting footprints, enabling direct drop-in replacement in existing drive platforms without mechanical modification

With a factory lead time of 99 weeks on new production orders, the 6MBI50S-120-52 presents a serious procurement challenge for both OEM build schedules and MRO emergency replacements. Extended lead times of this magnitude can halt production lines and delay equipment repairs for nearly two years when relying solely on the factory channel. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time Fuji IGBT modules specifically to bridge this gap, providing verified new OEM stock when the standard supply chain cannot deliver on your schedule.

ATI Accurate Technology is headquartered in Palmetto, Florida and specializes in power semiconductors including IGBTs, thyristors, diodes, and rectifier modules. Orders placed before 5PM EST ship same day. Contact our team for immediate availability, datasheet support, and volume pricing on the 6MBI50S-120-52 and related Fuji modules. Reach us at 239-734-7566 or sales@igbts.us — we're ready to support your procurement and engineering teams with fast, reliable sourcing.
