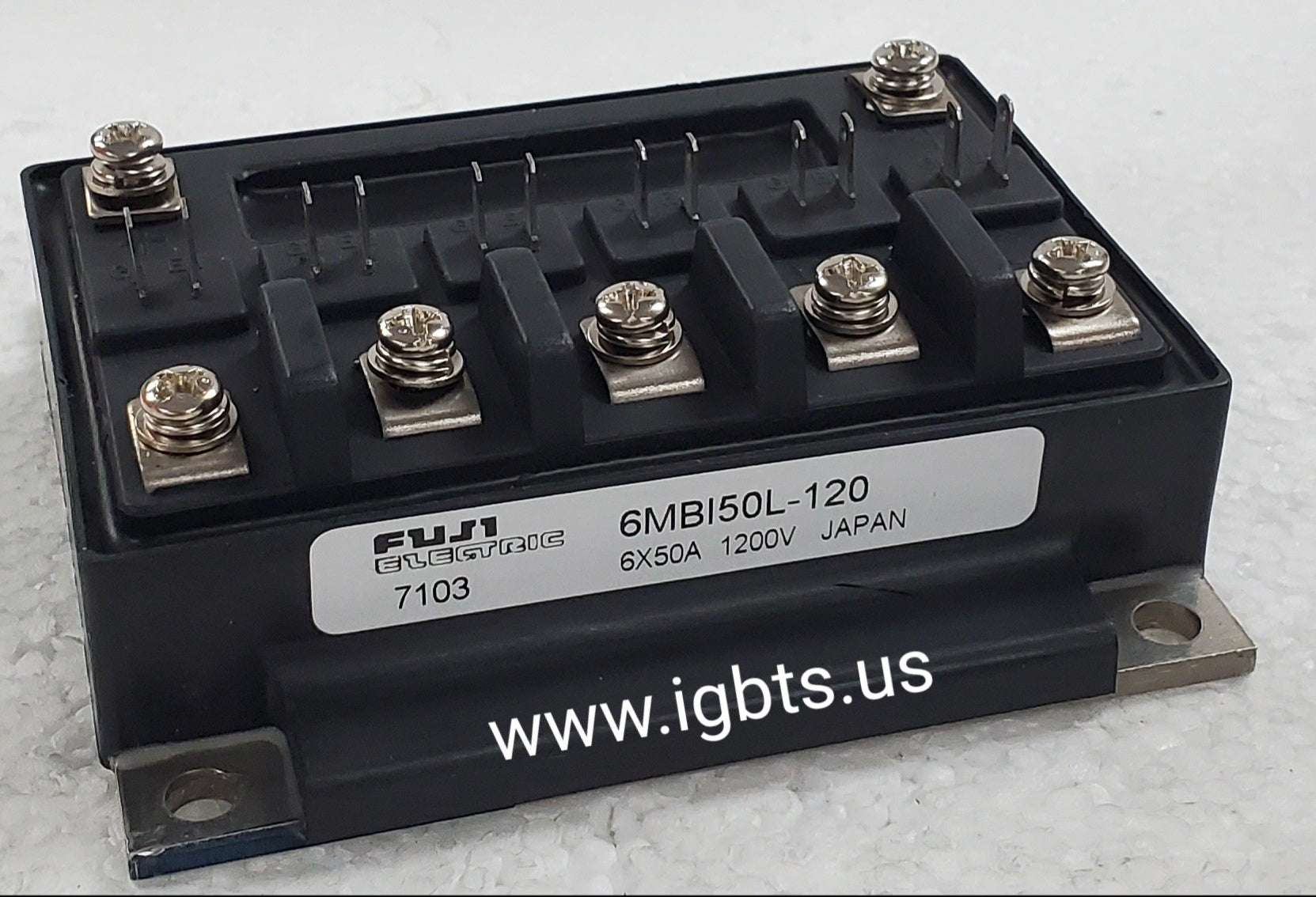

The Fuji 6MBI50L-120 is a 1200V, 50A six-pack IGBT module integrating six isolated-gate bipolar transistors in a full three-phase bridge configuration within a single package. Designed for high-frequency switching in demanding power conversion environments, this module features low saturation voltage (V_CE(sat)), fast switching characteristics, and integrated freewheeling diodes, making it well-suited for compact, thermally efficient inverter designs. The 6MBI50L-120 belongs to Fuji Electric's L-series IGBT lineup, which is recognized for reliability and consistent parametric performance across industrial duty cycles.

The 6MBI50L-120 is widely deployed in AC motor drive systems, servo amplifiers, uninterruptible power supplies (UPS), and industrial inverters where a compact 6-pack footprint is preferred over discrete switch assemblies. Its 1200V blocking capability provides adequate voltage headroom for 480V AC bus applications, while the 50A continuous rating supports fractional to mid-range horsepower drive platforms. Additional applications include solar inverters, induction heating equipment, and regenerative drive systems requiring a proven, thermally managed switching solution.

Quick Reference: 6MBI50L-120

Key Features of the 6MBI50L-120:

• 1200V collector-emitter voltage (V_CEO) with 50A continuous collector current in a single 6-pack module
• Integrated freewheeling diodes on each switch position, eliminating the need for external anti-parallel diodes
• Low V_CE(sat) characteristic reduces conduction losses in continuous-duty PWM inverter operation
• Isolated baseplate construction supports direct mounting to heatsink without additional electrical isolation hardware
• Six-switch full-bridge topology enables direct three-phase inverter implementation with minimal external gate drive circuitry
• Fuji L-series process technology optimized for switching frequencies up to 20kHz in standard industrial inverter applications

With a factory lead time of 99 weeks on new production orders, the 6MBI50L-120 presents a significant procurement challenge for maintenance teams managing equipment uptime and for OEMs with active production schedules. Extended lead times at this level place the part in a category where distributor stock becomes the only reliable near-term source. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time IGBT modules precisely for these situations, providing a critical buffer between factory allocation delays and your operational requirements.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, specializing in IGBTs, thyristors, diodes, and rectifier modules — including obsolete and long-lead-time parts. Orders received before 5PM EST ship same day. Contact our team for volume pricing, cross-reference support, or urgent replacement needs. Call 239-734-7566 or email sales@igbts.us.
