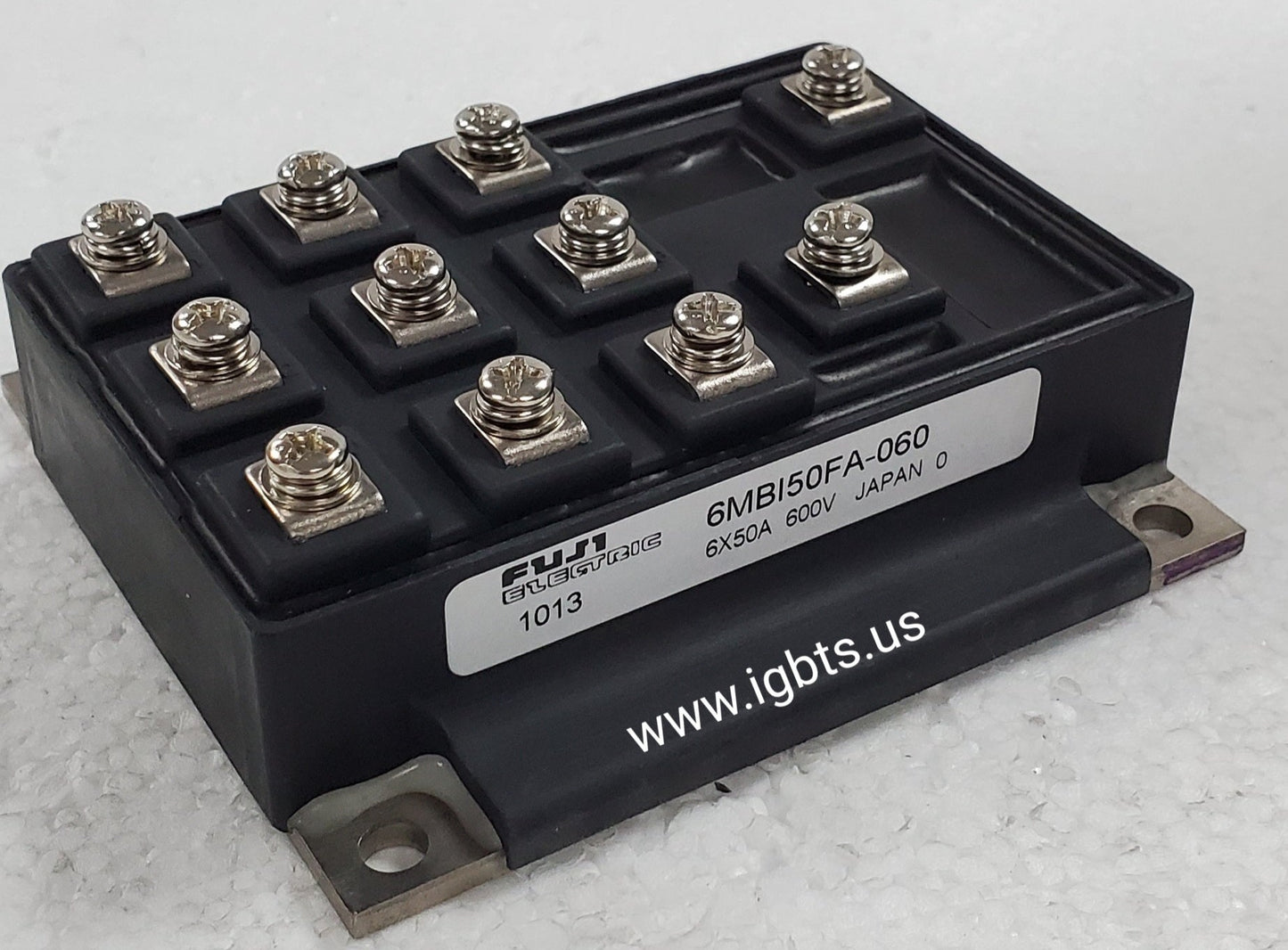

The Fuji 6MBI50FA-060 is a 6-Pack IGBT module integrating six insulated gate bipolar transistors in a three-phase bridge configuration, rated for 50A continuous collector current and 600V collector-emitter voltage. Built on Fuji's FA-series platform, this module features integrated freewheeling diodes, a common isolated baseplate for simplified thermal management, and gate drive characteristics optimized for switching frequencies typical in industrial inverter designs. It is a direct-fit solution for compact, high-efficiency power conversion stages requiring a fully integrated six-switch bridge in a single package.

The 6MBI50FA-060 is widely deployed in AC motor drives, servo amplifiers, and variable frequency drives across manufacturing, HVAC, pumping, and material handling applications. Its 600V blocking voltage and 50A current rating make it well-suited for 380–480VAC three-phase systems common in industrial environments. The module also sees use in UPS systems, induction heating inverters, and regenerative drive topologies where a compact, thermally efficient six-pack package reduces board space and wiring complexity compared to discrete or dual-pack configurations.

Quick Reference: 6MBI50FA-060

Key Features of the 6MBI50FA-060:

• 6-Pack three-phase bridge configuration with integrated freewheeling diodes — reduces external component count and simplifies gate drive layout
• 600V V_CES and 50A I_C continuous rating suitable for 480VAC industrial drive applications with standard derating margins
• Low V_CE(sat) characteristics inherent to Fuji FA-series IGBTs reduce conduction losses and heat dissipation requirements at rated current
• Isolated copper baseplate construction enables direct mounting to heatsinks without additional isolation hardware, improving thermal resistance path
• Optimized for switching frequencies in the 4–15 kHz range typical of industrial PWM inverters and servo drive output stages
• Industry-standard footprint and pinout ensuring drop-in compatibility with existing PCB layouts and drive platforms using earlier FA-series modules

With a factory lead time of 99 weeks for new production, the 6MBI50FA-060 presents a significant procurement risk for maintenance teams managing unplanned downtime or engineering teams in active production. Fuji FA-series modules are mature platform components, and many distributors carry limited or no inventory. Whether you need a single unit for emergency repair or a buffer stock quantity to protect your production line, sourcing from a stocking distributor with verified new OEM inventory is the only reliable path to avoiding extended equipment outages or costly drive replacements.

ATI Accurate Technology is a power semiconductor specialist stocking IGBTs, thyristors, diodes, and rectifier modules — including hard-to-find and long-lead-time parts like the 6MBI50FA-060. Located in Palmetto, Florida, ATI ships same-day on orders placed before 5PM EST. Volume pricing is available for MRO stocking orders. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm availability and request a quote.
