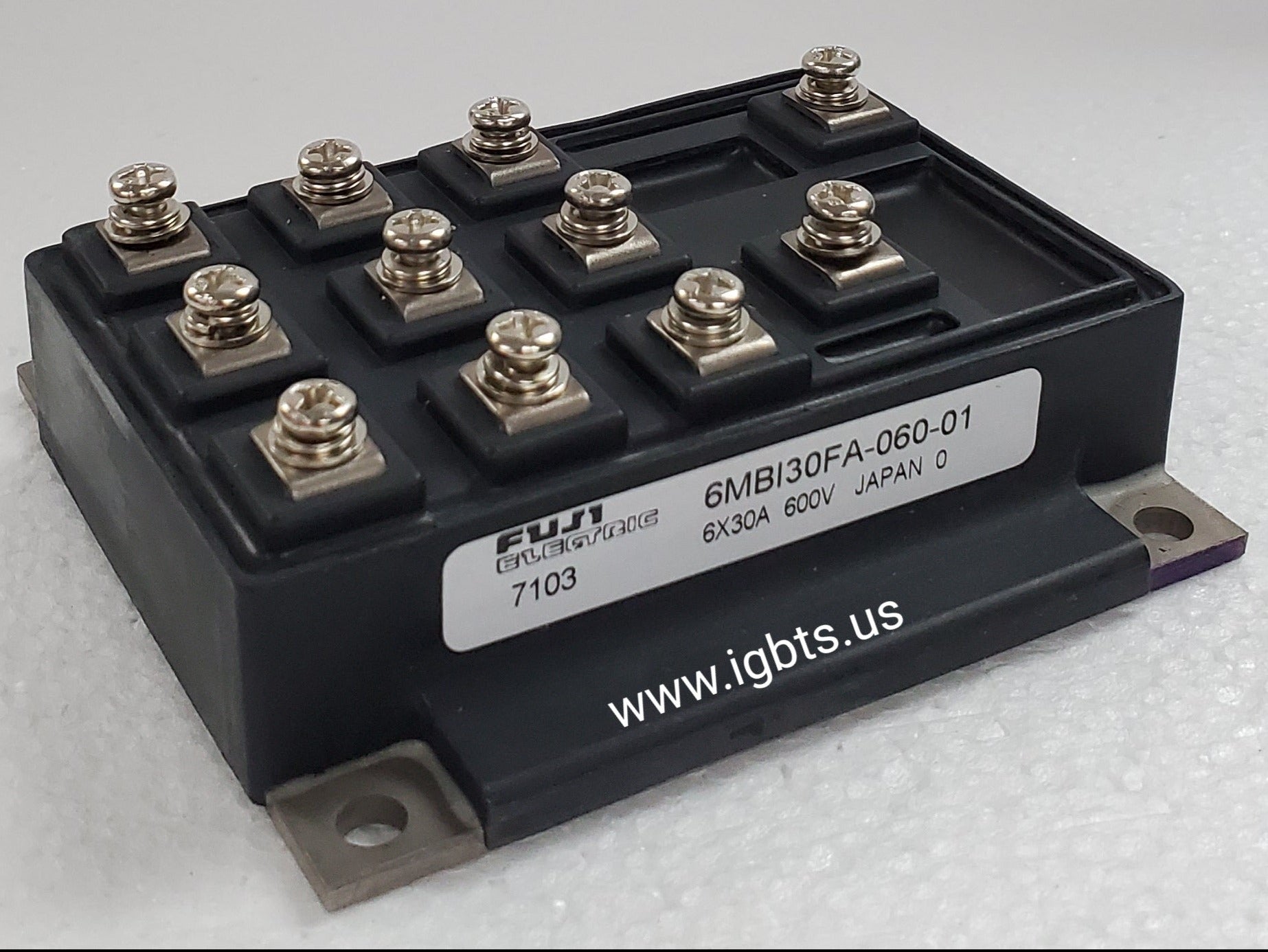

The Fuji 6MBI30FA-060-01 is a 6-pack IGBT module combining six insulated gate bipolar transistors in a single package, rated for 30A continuous collector current and 600V collector-emitter voltage. The FA-series package integrates a complete three-phase bridge configuration, streamlining inverter stage design and reducing board-level complexity. Built to Fuji Electric's established FA-series process, this module delivers low saturation voltage, fast switching characteristics, and a thermally efficient baseplate construction suited to demanding industrial duty cycles.

This module is widely deployed in variable frequency drives (VFDs), servo amplifiers, uninterruptible power supplies (UPS), and three-phase soft-start systems in the 5–15kW range. Its 6-pack topology is a preferred choice for OEM equipment builders and field service engineers replacing aging inverter stages in CNC machinery, HVAC compressor drives, and automated conveyor systems. The 600V class makes it appropriate for 380–480VAC bus architectures common across North American and European industrial installations.

Quick Reference: 6MBI30FA-060-01

Key Features of the 6MBI30FA-060-01:

• Six-switch 3-phase bridge configuration in a single FA-series package, reducing external component count and assembly time
• 30A DC collector current rating with a 600V VCES breakdown voltage, suitable for 480VAC line-side applications with adequate derating margin
• Low collector-emitter saturation voltage (VCE(sat)) for reduced conduction losses and improved thermal efficiency at rated load
• Integrated freewheeling diodes on all six switches, eliminating the need for external anti-parallel diodes in inverter topologies
• Isolated aluminum nitride or equivalent substrate baseplate enabling direct heatsink mounting with standard thermal interface materials
• Compatible with industry-standard FA-series footprints, facilitating direct drop-in replacement in legacy Fuji-based drive platforms

With a factory lead time of 99 weeks on new production, the 6MBI30FA-060-01 presents a serious procurement challenge for facilities managing unplanned downtime or mid-project builds. Production discontinuation risk and extended allocation queues make open-market sourcing essential. ATI specializes in exactly this situation — maintaining inventory of hard-to-find, long-lead-time, and obsolete IGBT modules to keep your equipment running without waiting two years for factory fulfillment. Verify your requirement against the revision suffix (-01) to confirm pin and gate drive compatibility before installation.

ATI Accurate Technology, based in Palmetto, Florida, stocks the 6MBI30FA-060-01 new and ships same-day on orders received before 5PM EST. Whether you need a single replacement unit or volume quantities for MRO inventory, ATI offers competitive pricing and responsive support from a team that knows power semiconductors. Contact us at 239-734-7566 or sales@igbts.us to confirm availability and request a quote today.
