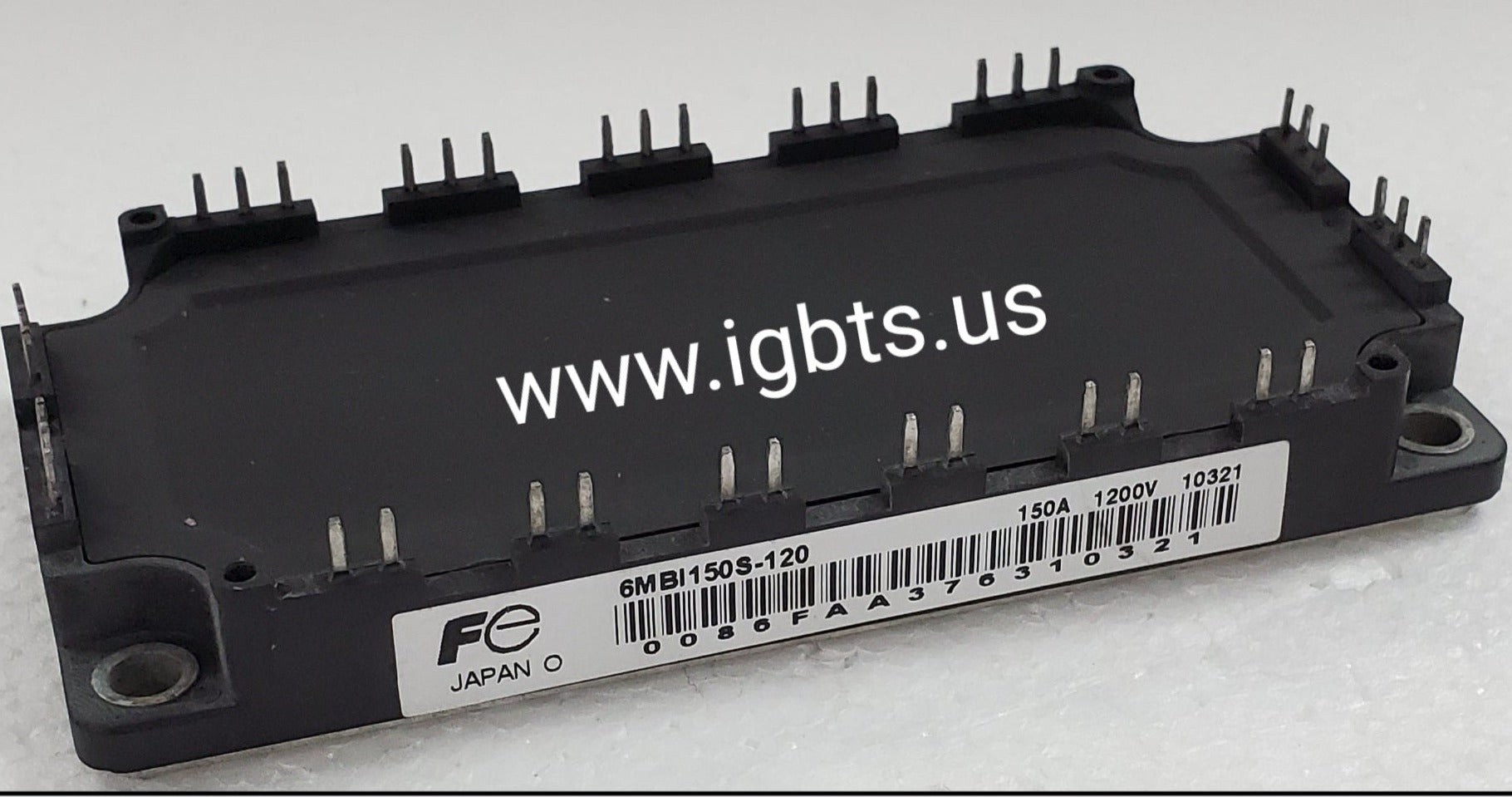

The Fuji 6MBI150S-120 is a sixth-generation 6-pack IGBT module integrating six insulated gate bipolar transistors and six freewheeling diodes in a single package, rated for 150A continuous collector current and 1200V collector-emitter voltage. The monolithic 6-in-1 topology eliminates the complexity of discrete component assembly, reducing parasitic inductance and simplifying gate drive design. This module is engineered for high-frequency PWM switching in demanding industrial power conversion environments where thermal efficiency and switching speed are critical to system reliability and efficiency.

The 6MBI150S-120 is widely deployed in variable frequency drives (VFDs) controlling AC induction and permanent magnet motors across manufacturing, HVAC, pumping, and compressor applications. It is equally suited for medium-power UPS systems, solar inverters, induction heating equipment, and servo drive platforms where a compact, pre-configured three-phase bridge is required. OEM machine builders and MRO engineers rely on this module for direct drop-in replacement in Fuji-based drive platforms as well as custom inverter designs that demand a proven, thermally efficient power stage in the 100–200A class.

Quick Reference: 6MBI150S-120

Key Features of the 6MBI150S-120:

• 1200V VCES and 150A IC rating supports robust margin in 690V AC bus applications with standard derating practices
• Integrated freewheeling diodes on all six positions eliminate external diode selection and reduce BOM complexity
• Low VCE(sat) characteristic reduces conduction losses and thermal dissipation at full load current
• Optimized for PWM switching frequencies up to 20kHz, suitable for high-resolution torque and speed control applications
• Isolated baseplate construction allows direct mounting to heatsink without additional electrical isolation hardware
• Industry-standard footprint and pinout compatible with Fuji S-series drive platforms for direct MRO replacement

With a factory lead time of 99 weeks on new production orders, the 6MBI150S-120 presents a serious procurement challenge for maintenance teams managing unplanned downtime or production engineers building new systems. Extended fab queues on Fuji IGBT modules are a persistent reality in the current power semiconductor supply chain. Sourcing from a stocking distributor with verified OEM inventory is the only practical path to fast fulfillment. Waiting on factory allocation is not a viable option when a drive failure is shutting down a production line or critical infrastructure system.

ATI Accurate Technology, located in Palmetto, Florida, maintains ready stock of the 6MBI150S-120 and ships same-day on orders received before 5PM EST. Whether you need a single replacement unit or volume quantities for a fleet rebuild or OEM production run, ATI can support your timeline. Contact our power electronics team at 239-734-7566 or sales@igbts.us for pricing, volume discounts, and lead time confirmation.
