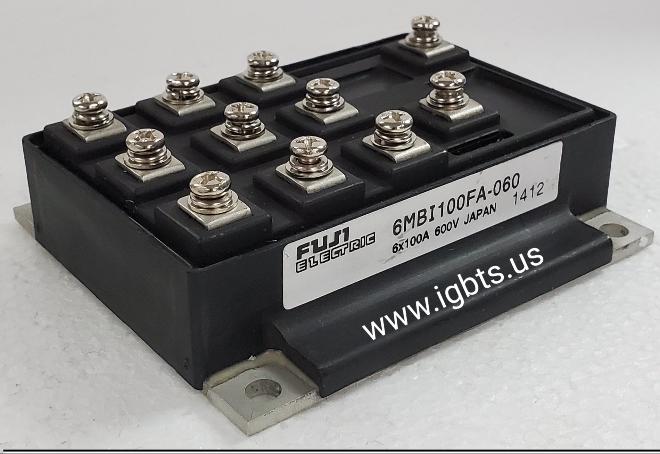

The 6MBI100FA-060 is a Fuji Electric six-pack IGBT module combining six insulated gate bipolar transistors and integrated freewheeling diodes in a single compact housing. With a continuous collector current rating of 100A and a collector-emitter voltage of 600V, this module is engineered to deliver efficient, reliable switching performance in demanding power conversion environments. The F-series package design from Fuji Electric offers low inductance and optimized thermal characteristics, making it a preferred solution for high-density power electronics designs.

The 6MBI100FA-060 is widely used across a broad range of industrial and commercial applications. Its six-pack topology simplifies three-phase inverter circuit design by consolidating the entire bridge into one module. Typical applications include variable frequency AC motor drives, industrial servo systems, uninterruptible power supply (UPS) equipment, solar inverters, welding power supplies, and general-purpose frequency converters. The module is particularly valued in designs where board space is limited and reliability under continuous load is essential.

Quick Reference: 6MBI100FA-060

Key Features:

• Six-pack IGBT configuration with integrated freewheeling diodes for simplified three-phase inverter designs
• 100A continuous collector current rating suitable for medium-power industrial drive applications
• 600V collector-emitter voltage providing a robust safety margin in 400V AC system designs
• Fuji F-series low-profile package with optimized thermal resistance for high-density mounting
• Fast switching characteristics reduce switching losses and improve overall system efficiency
• Compatible with standard Fuji gate drive circuits, simplifying design reuse and system integration

Sourcing the 6MBI100FA-060 can be challenging through standard distribution channels, particularly for maintenance, repair, and upgrade projects where the part may have long lead times or limited availability. ATI Accurate Technology specializes in exactly these scenarios, maintaining inventory of current, long-lead-time, and hard-to-find Fuji IGBT modules to support engineers and procurement teams who cannot afford costly downtime or project delays.

ATI Accurate Technology is your trusted source for the 6MBI100FA-060 and the full range of Fuji Electric power semiconductor modules. Located in Palmetto, Florida, ATI ships same-day on orders placed before 5PM EST. Contact our power semiconductor specialists today at 239-734-7566 or email sales@igbts.us for pricing, availability, and technical support.
