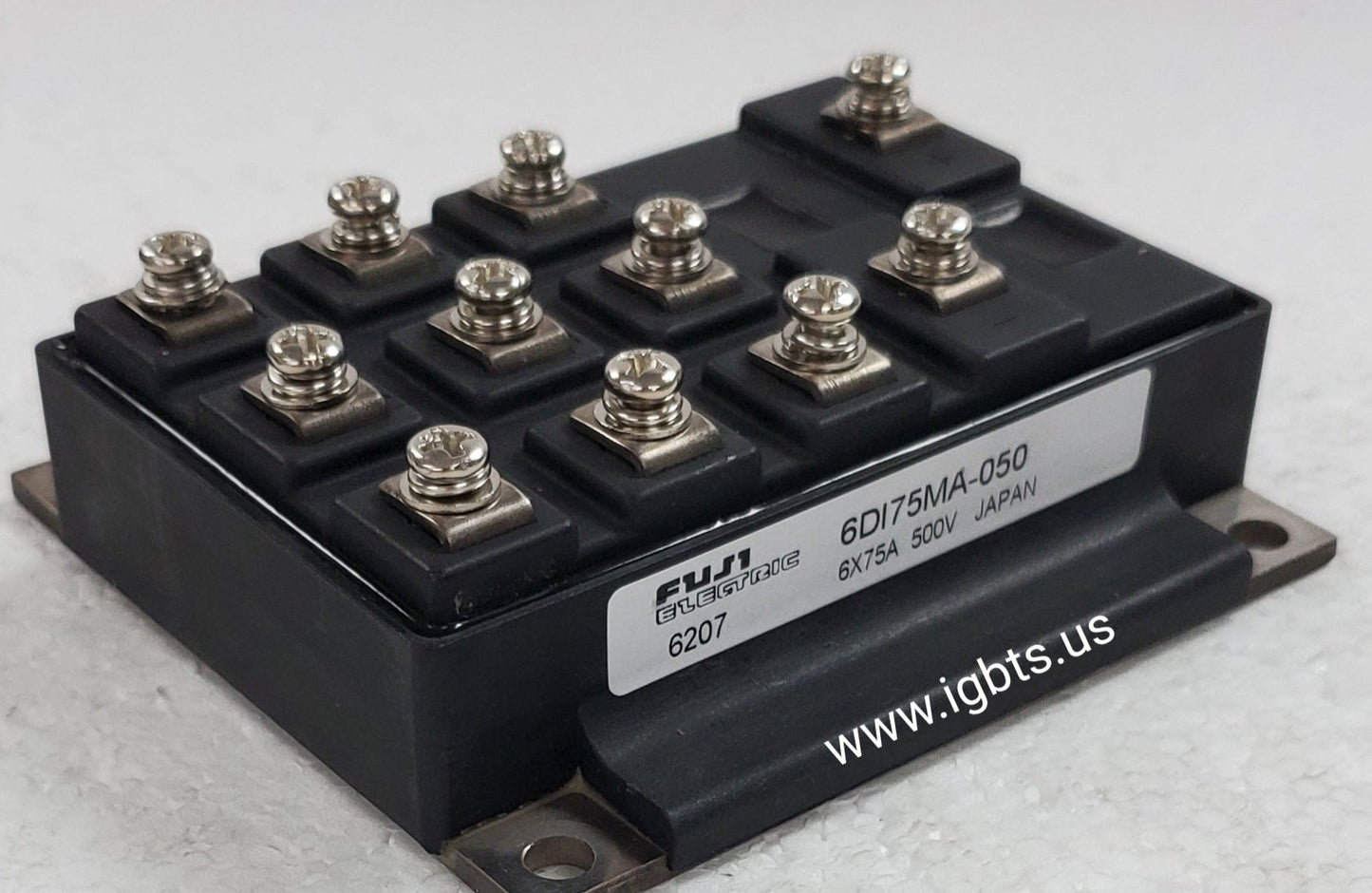

The Fuji 6DI75MA-050 is a 6-pack diode module combining six discrete diodes in a single compact package, rated for 75A continuous forward current and 500V repetitive peak reverse voltage. This configuration provides a complete three-phase full-wave rectifier bridge in one module, simplifying PCB layout and reducing assembly time in high-current power conversion designs. The module is built to Fuji's established power semiconductor standards, delivering consistent forward voltage characteristics, low thermal resistance, and reliable surge current handling suited to demanding industrial environments.

The 6DI75MA-050 is widely used in AC drive front-end rectifier stages, uninterruptible power supplies (UPS), industrial servo drives, welding power supplies, and DC bus charging circuits. Its 6-pack topology makes it a direct fit for three-phase input rectification in variable frequency drives (VFDs) and soft-starter platforms operating at 480V AC input. The module is also found in elevator drives, CNC machine tool controllers, and regenerative power supply systems where thermal efficiency and board-space optimization are engineering priorities.

Quick Reference: 6DI75MA-050

Key Features of the 6DI75MA-050:

• 6-pack diode configuration provides a complete three-phase full-wave rectifier in a single module footprint
• 75A average forward current rating supports high-power industrial drive and rectifier applications
• 500V repetitive peak reverse voltage (VRRM) suitable for 480V AC three-phase input systems with appropriate derating
• Low thermal resistance junction-to-case (Rth(j-c)) enables efficient heat transfer to external heatsinks, maximizing continuous current capability
• High surge current (IFSM) rating provides tolerance against line transients and capacitive inrush at startup
• Isolated base plate construction allows multiple modules to share a common heatsink without electrical isolation barriers between them

With a current factory lead time of 99 weeks from Fuji, procurement teams relying on scheduled production orders face serious risk of line stoppages, delayed commissioning, and extended equipment downtime. For maintenance engineers replacing a failed module in an active drive system, waiting nearly two years is simply not viable. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time power semiconductors like the 6DI75MA-050 precisely to bridge this gap — providing immediate access to new OEM parts when the factory pipeline cannot respond in time.

ATI Accurate Technology is located in Palmetto, Florida, and ships same-day on orders received before 5PM EST. Whether you need a single replacement module or volume quantities for a scheduled MRO program, our team is ready to support you. Contact us at 239-734-7566 or sales@igbts.us for real-time stock confirmation, datasheets, and volume pricing on the 6DI75MA-050 and related Fuji power semiconductor modules.
