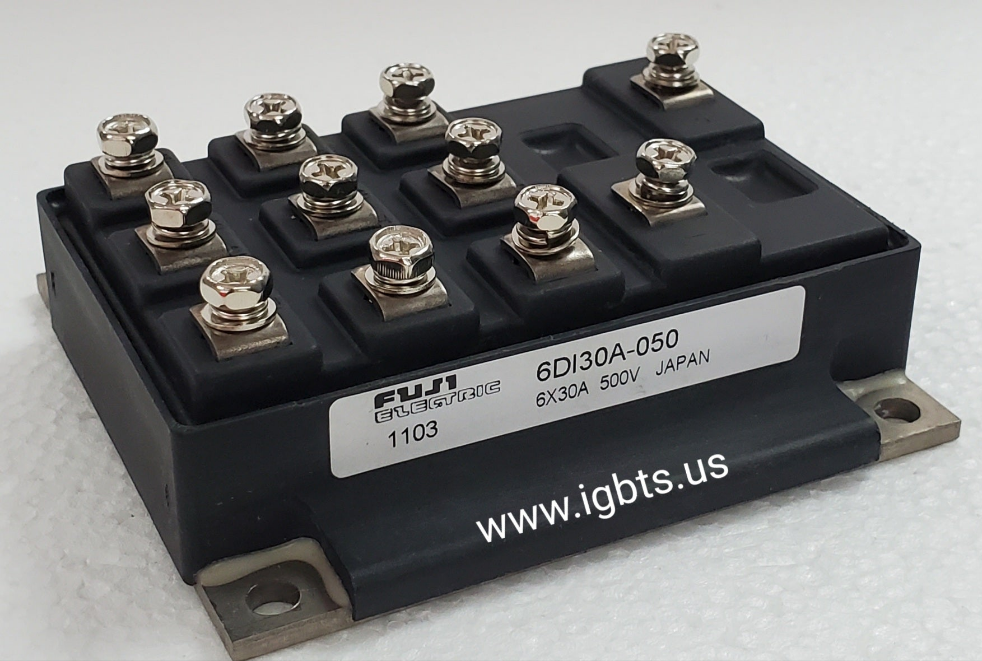

The Fuji 6DI30A-050 is a six-pack diode module configured to deliver full three-phase bridge rectification in a single compact package. Rated at 30 amperes continuous forward current and 500 volts repetitive peak reverse voltage, this module integrates six discrete diodes in a standard 6-pack topology, simplifying PCB layout and reducing assembly complexity. Its robust construction supports reliable operation in demanding industrial environments where thermal cycling, vibration, and continuous duty are routine operating conditions. The module is compatible with standard heatsink mounting, enabling effective thermal management in high-density power assemblies.

The 6DI30A-050 is well suited for AC-to-DC front-end rectification in variable frequency drives, servo amplifiers, UPS systems, and industrial DC power supplies. Its 6-pack configuration makes it a direct fit for three-phase input stages where a compact, pre-assembled bridge is preferred over discrete component arrangements. Engineers specify this module in machine tool controls, elevator drives, pump and fan inverters, and regenerative braking circuits where reliable rectification and consistent forward voltage characteristics are essential to system performance and longevity.

Quick Reference: 6DI30A-050

Key Features of the 6DI30A-050:

• Six-pack full-bridge diode configuration for three-phase AC rectification in a single module footprint
• 30A continuous forward current rating with high surge current capability for transient load conditions
• 500V repetitive peak reverse voltage (VRRM) providing adequate margin for 200V and 400V class drive systems
• Low forward voltage drop across all six diodes, reducing conduction losses and minimizing heatsink requirements
• Industry-standard baseplate mounting with isolated copper base for direct heatsink attachment and efficient thermal dissipation
• Fuji OEM construction with matched diode characteristics ensuring balanced current sharing across all six rectifier legs

The 6DI30A-050 has been discontinued by Fuji Electric, and new factory production carries a 99-week lead time — effectively unavailable through standard distribution channels. For maintenance teams managing aging VFD platforms, servo systems, or legacy industrial equipment, waiting nearly two years for a replacement is not a viable option. Sourcing from a stocking distributor with verified OEM inventory is the only practical path to keeping critical machinery operational. Procuring spare units now is strongly advisable for facilities running equipment dependent on this module.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, specializing in IGBTs, diodes, thyristors, and rectifier modules — including obsolete and long-lead-time parts like the 6DI30A-050. Orders placed before 5PM EST ship same day. Contact our team for real-time stock confirmation, volume pricing, and technical support: call 239-734-7566 or email sales@igbts.us.
