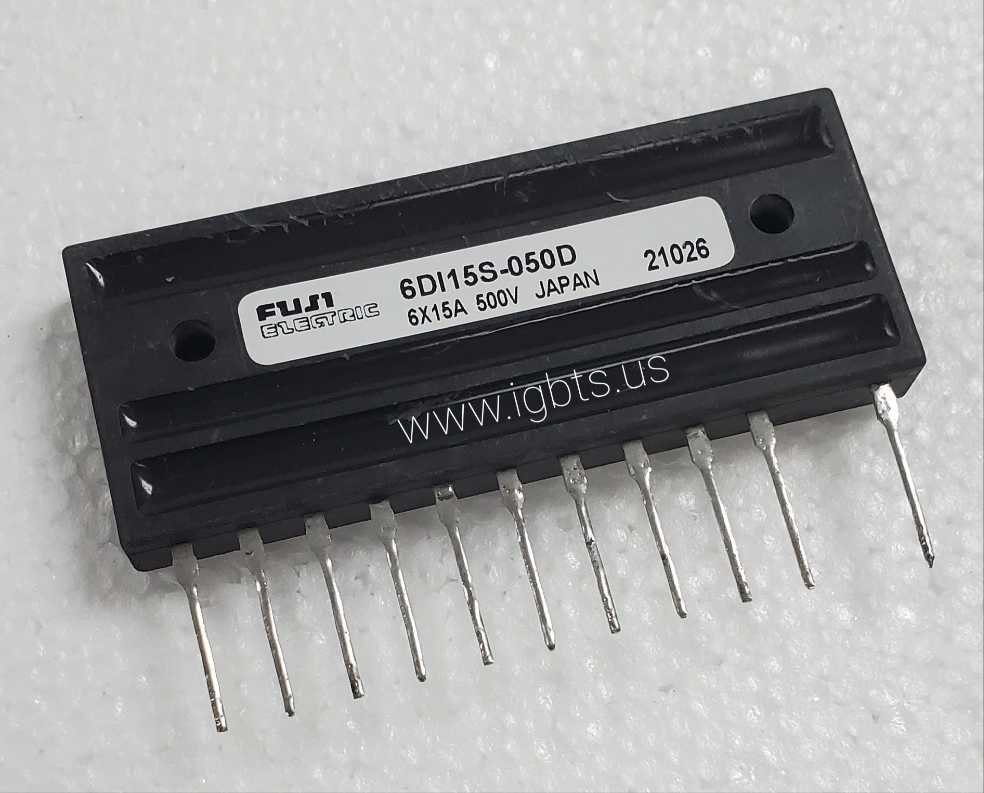

The Fuji 6DI15S-050D is a six-pack diode module integrating a complete three-phase bridge rectifier configuration within a single package. Rated at 15 amps continuous forward current and 500 volts repetitive peak reverse voltage, this module is engineered for reliable rectification in industrial-grade power electronics. The monolithic 6-pack topology eliminates the need for discrete diode mounting, reduces parasitic inductance across the bridge, and simplifies thermal management through a shared baseplate interface compatible with standard heatsink assemblies.

The 6DI15S-050D is well-suited for the input rectifier stages of variable frequency drives (VFDs), servo amplifiers, and AC-DC converters found throughout industrial automation, material handling, and HVAC systems. It also sees application in regenerative braking circuits, welding equipment power supplies, and UPS front-end rectifiers where compact three-phase rectification is required. OEM equipment manufacturers and MRO maintenance teams rely on this module to maintain uptime in legacy and current-generation drive platforms across process industries and discrete manufacturing environments.

Quick Reference: 6DI15S-050D

Key Features of the 6DI15S-050D:

• Six-pack bridge configuration integrates all six rectifier diodes in a single isolated baseplate module, reducing parts count and assembly complexity
• 500V repetitive peak reverse voltage (VRRM) with adequate margin for 230V/400V three-phase line inputs with transient headroom
• 15A continuous forward current rating suitable for low-to-mid power drive and converter front-ends
• Isolated copper baseplate construction allows direct heatsink mounting without additional electrical isolation hardware
• Low forward voltage drop optimized to minimize conduction losses and reduce thermal load at the heatsink interface
• Compact module footprint compatible with standard Fuji power module mounting patterns, simplifying one-for-one replacement in existing designs

With a factory lead time of 99 weeks on new production, the 6DI15S-050D presents a significant procurement challenge for both OEM production lines and MRO operations requiring fast turnaround. Extended lead times of this length are increasingly common across the power semiconductor sector, particularly for established module families that remain embedded in long-lifecycle industrial equipment. Procurement teams managing safety stock, equipment repair pipelines, or scheduled maintenance outages cannot afford to wait nearly two years for factory allocation. Sourcing from a stocking distributor with verified OEM inventory is the practical solution.

ATI Accurate Technology, based in Palmetto, Florida, maintains ready inventory of the 6DI15S-050D and ships same-day on orders received before 5PM EST. ATI specializes in IGBTs, diodes, thyristors, and rectifier modules — including hard-to-find and long-lead-time parts exactly like this one. Volume pricing is available for larger quantity requirements. Contact ATI today at 239-734-7566 or sales@igbts.us to confirm stock and place your order.
