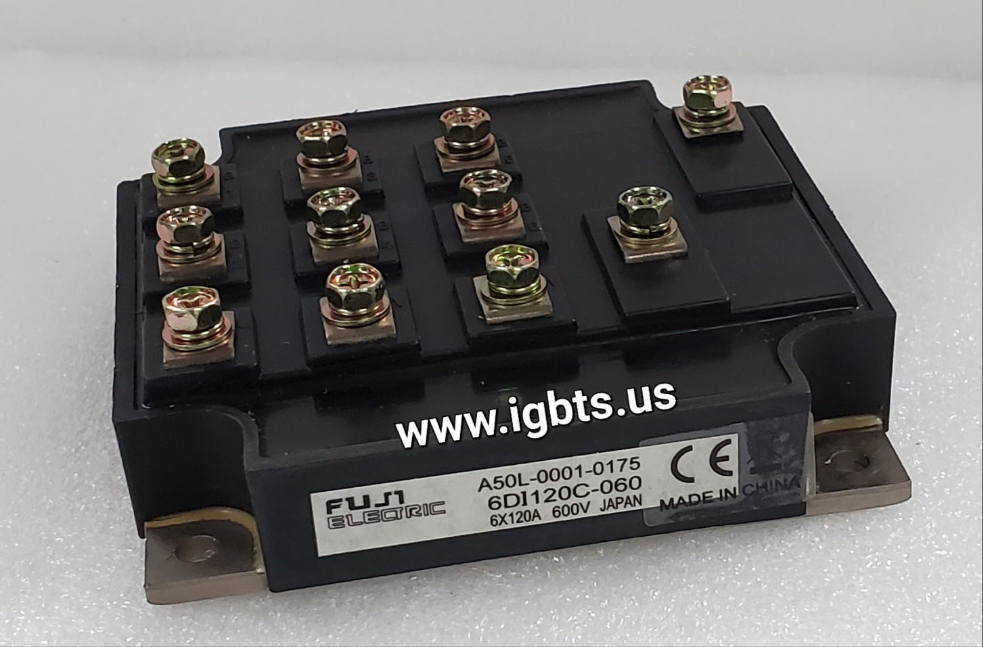

The Fuji 6DI120C-060 is a six-pack diode module configured as a full three-phase bridge rectifier in a single housing, rated for 120A continuous forward current and 600V repetitive peak reverse voltage. This module integrates six diodes in a common isolated baseplate package, providing a low-inductance, thermally efficient solution for converting AC line power to DC bus voltage. Fuji's established diode module construction delivers consistent forward voltage characteristics, reliable switching behavior, and robust thermal cycling performance suited for continuous industrial duty cycles.

The 6DI120C-060 is widely deployed in AC variable frequency drives (VFDs), servo drive front ends, industrial UPS systems, welding power supplies, and general-purpose DC power conversion equipment. Its 600V blocking capability makes it well-matched to 380–480VAC three-phase input systems common in manufacturing and process automation environments. The six-pack format reduces component count and wiring complexity compared to discrete diode assemblies, making it a preferred choice for OEM drive builders and field maintenance engineers replacing rectifier sections in existing equipment.

Quick Reference: 6DI120C-060

Key Features of the 6DI120C-060:

• Six-pack full-bridge diode configuration integrates complete three-phase rectification in a single isolated baseplate module
• 120A average forward current rating with high surge current capability for demanding industrial load profiles
• 600V repetitive peak reverse voltage (VRRM) suitable for 480VAC three-phase input with appropriate margin
• Isolated copper baseplate for direct heatsink mounting, enabling efficient thermal dissipation in high-density drive assemblies
• Low forward voltage drop minimizes conduction losses and reduces thermal stress during continuous operation
• Drop-in compatible with standard Fuji 6DI-series footprint, simplifying field replacement in existing drive platforms

With a factory lead time of 99 weeks for new production, the 6DI120C-060 represents a significant procurement challenge for maintenance teams managing unplanned drive failures or scheduled overhauls. Extended lead times of this length effectively place this part in the long-lead and allocation category, where waiting for factory delivery is not a viable option for production-critical equipment. Sourcing from a stocking distributor with verified OEM inventory is essential to avoid costly downtime. ATI Accurate Technology maintains inventory of hard-to-find Fuji diode modules precisely for these situations, offering new OEM parts without the delay or risk associated with grey-market sourcing.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, specializing in IGBTs, diodes, thyristors, and rectifier modules including obsolete and long-lead-time parts. Orders placed before 5PM EST ship same day. Contact our team for volume pricing, cross-reference assistance, or technical questions. Call 239-734-7566 or email sales@igbts.us — we're ready to support your maintenance and procurement needs.
