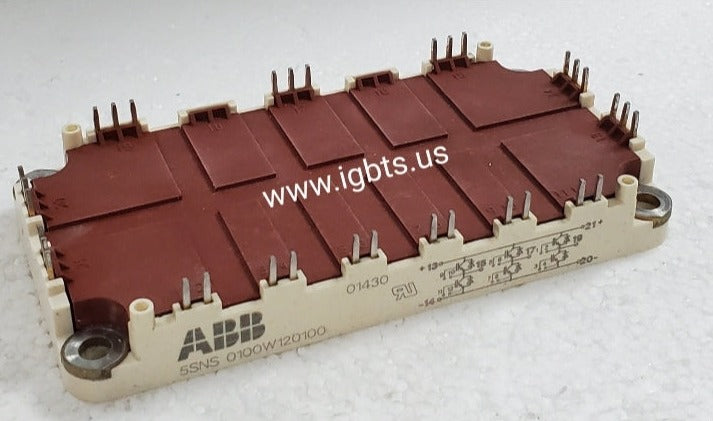

The ABB 5SNS0100W120100 is a 1200V, 100A IGBT module engineered for high-efficiency power conversion in industrial and commercial applications. Manufactured by ABB, a globally recognized leader in power semiconductor technology, this module combines low saturation voltage with fast switching capability and integrated freewheeling diodes. Its robust construction supports demanding duty cycles across a wide operating temperature range, making it a reliable choice for design engineers and maintenance teams requiring consistent performance in continuous or pulse-width modulated switching environments.

This IGBT module is well suited for variable frequency drives (VFDs), industrial servo systems, solar inverters, UPS and energy storage systems, induction heating equipment, and traction converters. The 1200V blocking voltage and 100A current rating place it squarely in the mid-power range where efficiency and thermal management are critical. Systems integrators replacing aging drive modules or scaling production lines will find the 5SNS0100W120100 a direct, dependable solution for both OEM builds and field maintenance applications.

Quick Reference: 5SNS0100W120100

Key Features of the 5SNS0100W120100:

• 1200V collector-emitter voltage (VCES) with 100A continuous collector current rating for mid-power drive and inverter applications
• Low VCEsat characteristics reduce conduction losses and improve overall system efficiency at rated load
• Integrated inverse freewheeling diodes eliminate the need for external anti-parallel diodes in bridge configurations
• Isolated baseplate construction for straightforward heatsink mounting and electrical isolation in multi-module assemblies
• Wide junction temperature operating range supports high ambient and elevated thermal environments common in industrial enclosures
• Industry-standard module footprint compatible with common ABB and third-party drive platforms, simplifying field replacement

The ABB 5SNS0100W120100 carries a factory lead time of approximately 99 weeks for new production orders — nearly two years. For maintenance operations, production shutdowns cannot wait on that kind of timeline. Obsolescence and extended lead times on ABB IGBT modules are an ongoing challenge across the drives and power conversion industry. ATI Accurate Technology maintains independent stock of hard-to-find and long-lead-time semiconductors precisely to bridge this gap, keeping critical equipment running without costly downtime or forced redesigns.

ATI Accurate Technology is headquartered in Palmetto, Florida, and specializes in IGBTs, thyristors, diodes, and rectifier modules — including obsolete and long-lead-time parts. Orders placed before 5PM EST ship same day. Whether you need a single replacement module or volume pricing for a larger procurement, our team is ready to help. Call us at 239-734-7566 or email sales@igbts.us for availability, lead time confirmation, and competitive quotes.
