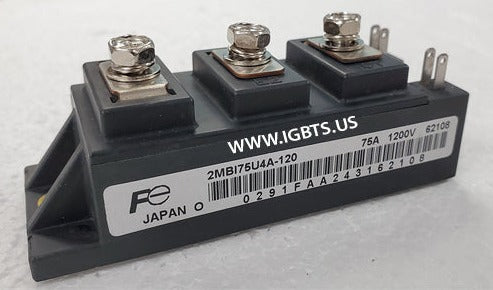

The Fuji Electric 2MBI75U4A-120 is a dual-configuration IGBT module rated for 75A continuous collector current and 1200V blocking voltage. Engineered on Fuji's proven U4A-series platform, this module integrates two isolated IGBT switches with freewheeling diodes in a compact, industry-standard package. It is optimized for low switching losses and tight thermal performance, making it a reliable building block in demanding power electronic circuits where efficiency and thermal stability are non-negotiable design requirements.

The 2MBI75U4A-120 is widely deployed in AC motor drive inverter stages, elevator control systems, UPS inverters, solar and wind power converters, and induction heating equipment. Its 1200V voltage class suits applications running from 480V to 690V AC bus systems, where adequate derating is essential. The dual topology simplifies half-bridge or phase-leg circuit construction, reducing component count and PCB real estate in both new designs and direct drop-in replacements for aging drive platforms across manufacturing, HVAC, and renewable energy installations.

Quick Reference: 2MBI75U4A-120

Key Features of the 2MBI75U4A-120:

• 1200V VCES blocking voltage with 75A continuous collector current rating for robust 480V–690V AC system integration
• Dual IGBT configuration with integrated freewheeling diodes eliminates external anti-parallel diode components in bridge topologies
• Low VCE(sat) characteristics reduce conduction losses and heat generation at high duty cycles
• Optimized for switching frequencies in the 5–20 kHz range typical of industrial variable frequency drives and inverter applications
• Industry-standard module footprint enables direct substitution in existing drive platforms without mechanical redesign
• Enhanced short-circuit withstand rating supports reliable overcurrent protection coordination in fault-prone industrial environments

With a factory lead time of 99 weeks for new production, the 2MBI75U4A-120 represents exactly the kind of long-lead-time, capacity-constrained component that can halt a production line or delay a capital project. Fuji U4A-series modules are frequently found in legacy variable speed drives and inverter platforms that remain in active service well beyond their original design life. When OEM spare stock is exhausted and factory orders stretch beyond two years, procurement teams need a distributor with verified inventory on the shelf rather than a promise on a purchase order.

ATI Accurate Technology maintains ready inventory of the 2MBI75U4A-120 from our Palmetto, Florida facility, with same-day shipping on orders received before 5PM EST. We specialize in hard-to-find and long-lead-time power semiconductors including IGBTs, thyristors, diodes, and rectifier modules. Volume pricing is available for MRO stocking programs and OEM production runs. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm availability and get a quote today.
