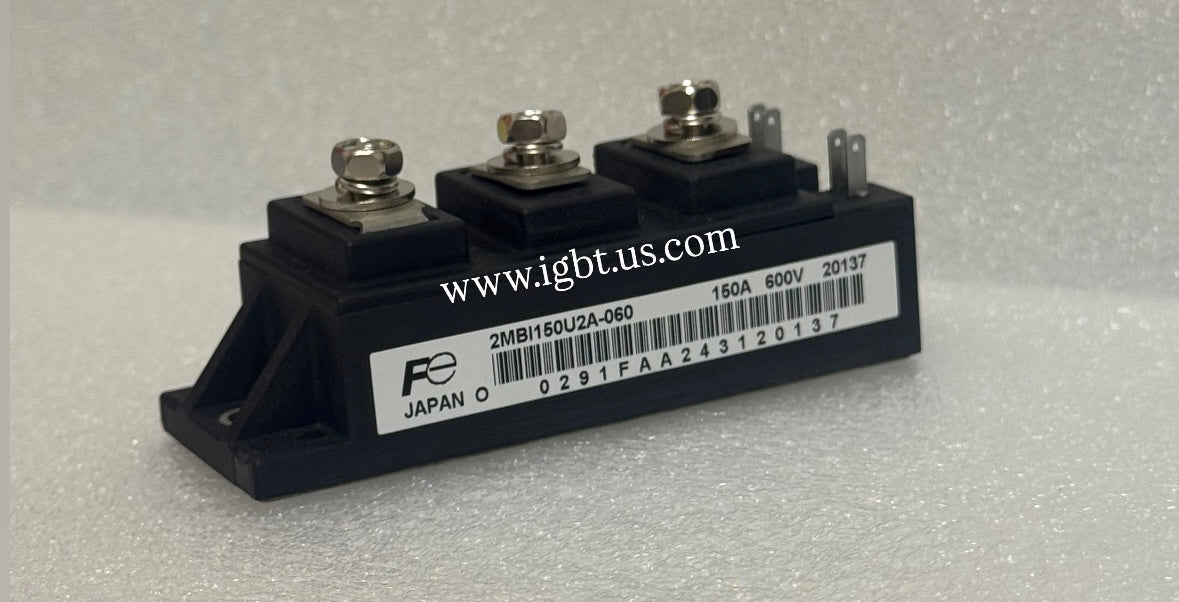

The Fuji Electric 2MBI150U2A-060 is a 600V, 150A dual IGBT module engineered for demanding power switching applications where efficiency, thermal performance, and switching speed are non-negotiable. Built on Fuji's U-series IGBT technology, this module integrates two IGBT switches with freewheeling diodes in a compact dual configuration, reducing external component count and simplifying converter topology design. Its 600V blocking voltage and 150A continuous current capability make it a reliable solution for mid-to-high power industrial converter stages requiring precise, repeatable switching performance across extended operational cycles.

The 2MBI150U2A-060 sees widespread deployment in AC motor drive inverter stages, regenerative braking systems, UPS inverters, induction heating equipment, and industrial servo drives. Its dual-switch configuration is particularly well-suited for half-bridge converter legs, enabling straightforward integration into three-phase inverter bridges and DC-DC converter architectures. Power electronics engineers working on elevator drives, CNC spindle drives, welding inverters, and HVAC variable frequency drives will recognize this module as a long-established workhorse in mid-range power converter platforms that demand consistent gate characteristics and low switching losses.

Quick Reference: 2MBI150U2A-060

Key Features of the 2MBI150U2A-060:

• 600V collector-emitter voltage (VCES) with 150A continuous collector current rating for mid-range industrial power stages
• Dual IGBT configuration with integrated freewheeling diodes, supporting half-bridge topologies without external antiparallel diodes
• Fuji U-series trench-gate IGBT technology delivering low saturation voltage (VCE(sat)) and reduced conduction losses
• Isolated baseplate construction for electrical isolation from heatsink, simplifying thermal management in multi-module assemblies
• Low thermal resistance junction-to-case (Rth(j-c)) enabling high power density designs with standard forced-air or liquid cooling
• Optimized gate charge characteristics for compatibility with standard IGBT gate driver ICs at 15V gate drive voltage

The 2MBI150U2A-060 has been discontinued by Fuji Electric, with any new production lead time extending beyond 99 weeks—effectively making factory-fresh procurement impractical for urgent maintenance or active production needs. For OEMs managing end-of-life equipment and MRO teams supporting installed drive systems, locating verified in-stock inventory is the only viable path to avoiding costly downtime. ATI Accurate Technology maintains ready stock of obsolete and long-lead Fuji IGBT modules specifically to support engineers and procurement professionals facing exactly this challenge, supplying new OEM components with full traceability.

ATI Accurate Technology is headquartered in Palmetto, Florida, and specializes in power semiconductors including IGBTs, thyristors, diodes, and rectifier modules—with particular expertise in obsolete and hard-to-find components. Orders placed before 5PM EST ship same day. Contact our team for volume pricing, cross-reference assistance, or availability on related Fuji modules. Call 239-734-7566 or email sales@igbts.us to speak directly with a power semiconductor specialist.
