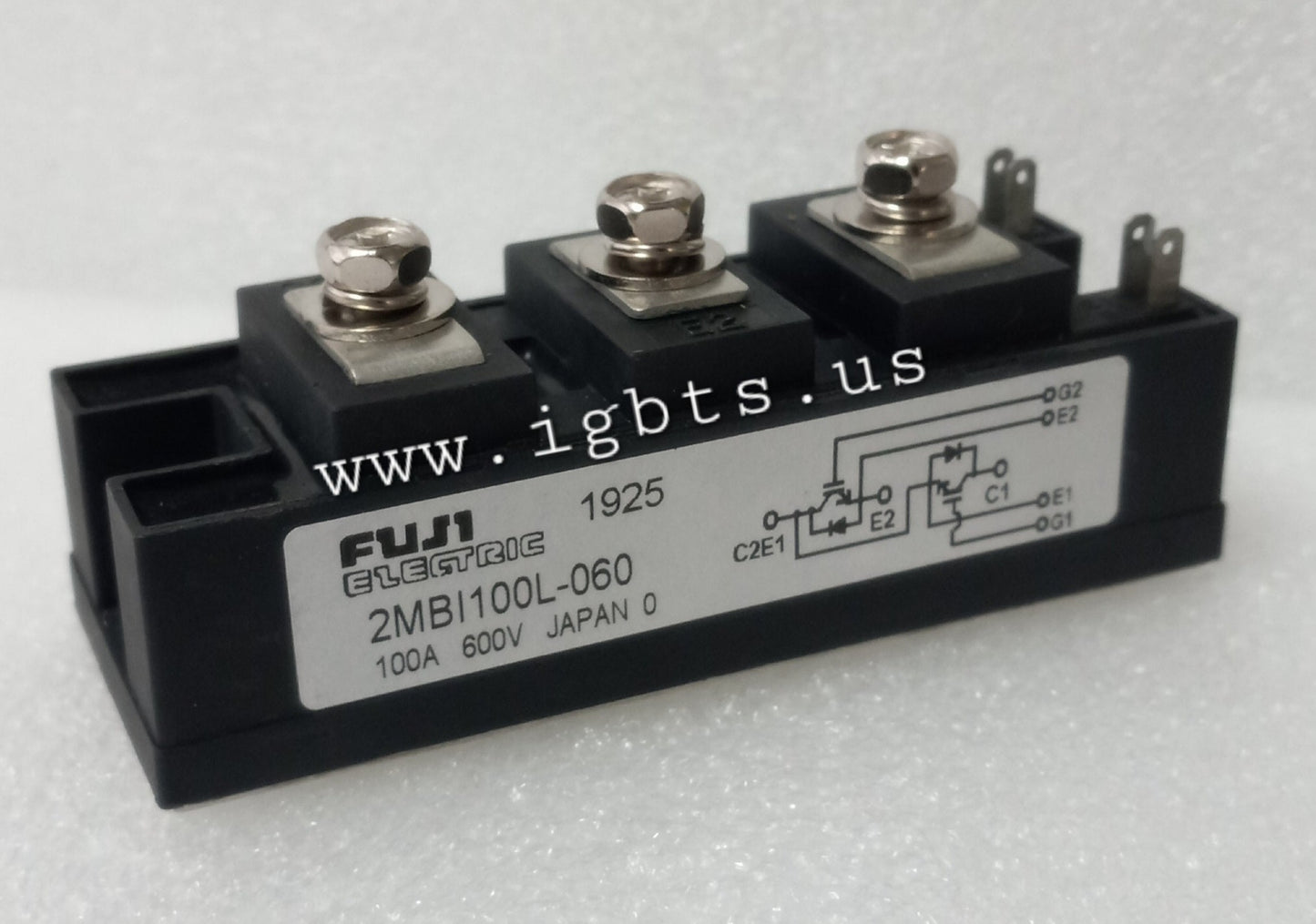

The Fuji 2MBI100L-060 is a dual-configuration IGBT module rated for 100A continuous collector current and 600V collector-emitter voltage. Built on Fuji's proven L-series IGBT technology, this module integrates two IGBT switches with freewheeling diodes in a compact, industry-standard package. It is engineered for high-efficiency switching in the low-to-mid power range, offering low saturation voltage (V_CE(sat)) and fast, controlled turn-off characteristics that minimize switching losses in demanding power electronic systems.

The 2MBI100L-060 is widely deployed in AC motor drives, servo amplifiers, UPS systems, induction heating equipment, and industrial inverters operating from standard 380–480VAC three-phase supply rails. Its dual topology makes it a natural fit for half-bridge leg implementations in three-phase voltage source inverters, as well as boost and buck converter stages in renewable energy and power conditioning equipment. The module's thermal performance and rugged construction make it a reliable choice for continuous-duty industrial environments.

Quick Reference: 2MBI100L-060

Key Features of the 2MBI100L-060:

• Dual IGBT configuration with integrated freewheeling diodes for simplified half-bridge circuit implementation
• 600V V_CE blocking voltage with 100A rated collector current suitable for 480VAC drive applications
• Low V_CE(sat) for reduced conduction losses in high duty-cycle operation
• Optimized gate charge and turn-off characteristics for switching frequencies typical of industrial PWM drives (1–20kHz range)
• Industry-standard module footprint compatible with common heatsink and busbar mounting hardware
• Internal NTC thermistor (model-dependent) supports over-temperature protection integration in drive control hardware

With a factory new-production lead time currently exceeding 99 weeks, the 2MBI100L-060 is a prime example of the supply chain pressure affecting Fuji IGBT modules across the industrial drive market. OEMs managing field spares, MRO procurement teams supporting aging drive fleets, and contract manufacturers facing line-down situations cannot afford to wait on factory allocation. Sourcing from a stocking distributor with verified new OEM inventory is the only reliable path to minimizing downtime exposure for equipment dependent on this module.

ATI Accurate Technology, based in Palmetto, Florida, maintains ready stock of the 2MBI100L-060 and ships same-day on orders received before 5PM EST. We serve maintenance engineers and procurement professionals nationwide with new OEM IGBTs, thyristors, diodes, and rectifier modules — including obsolete and hard-to-find parts. Volume pricing is available. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm availability and lead time.
