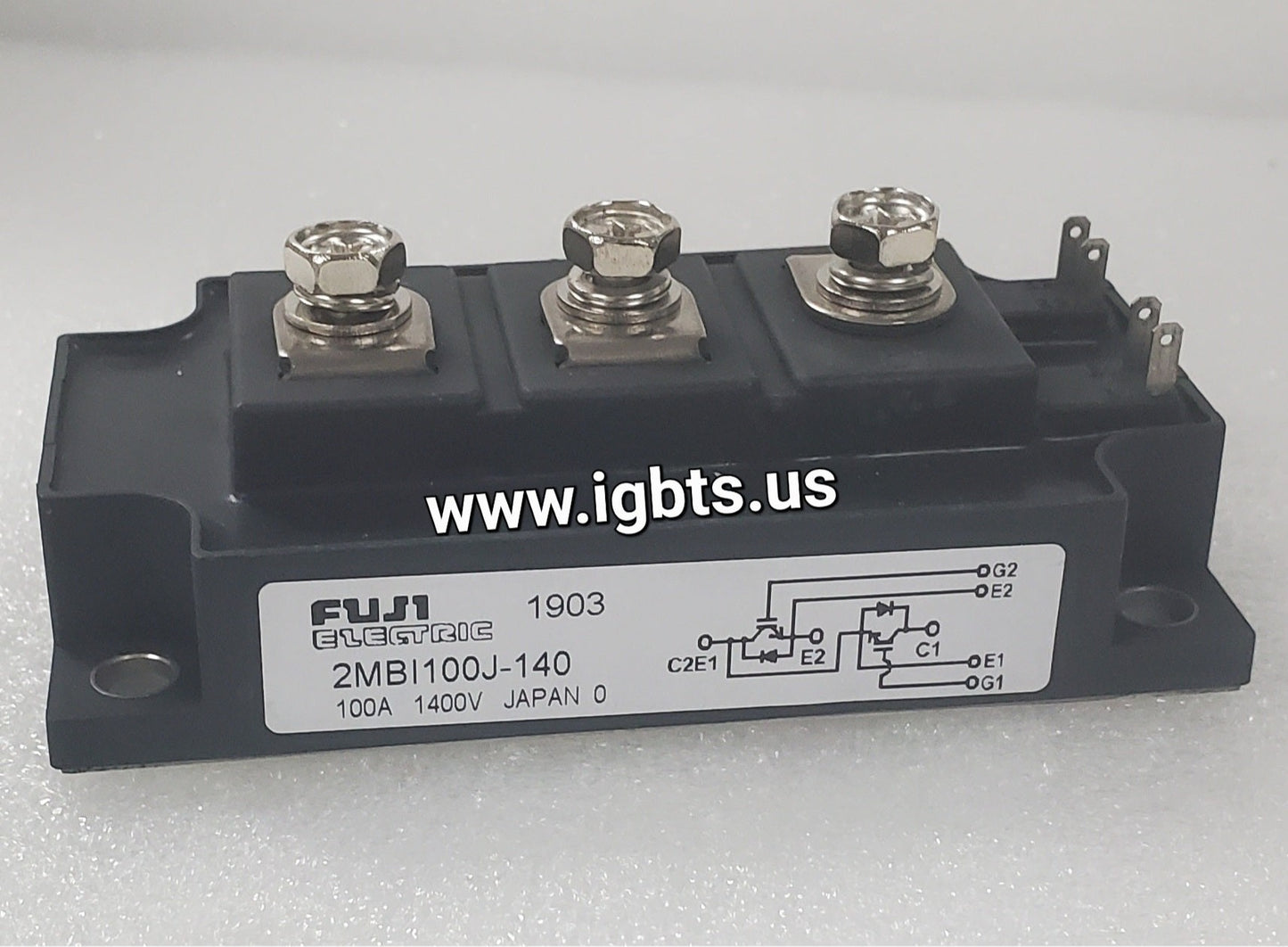

The Fuji 2MBI100J-140 is a dual-configuration IGBT module rated for 100A continuous collector current and a 1400V collector-emitter voltage (VCES). Built on Fuji's J-series IGBT technology, this module delivers the high blocking voltage and switching efficiency demanded by demanding power electronics designs. The integrated dual switch topology reduces external component count and board space, while the robust isolated baseplate construction supports reliable thermal management in high-duty-cycle environments. This is a precision-grade, new OEM component suitable for drop-in replacement or original equipment builds.

The 2MBI100J-140 is well suited for medium-to-high voltage industrial applications including AC motor drives, regenerative inverters, UPS systems, induction heating equipment, and traction converters. Its 1400V voltage rating provides critical headroom in 690VAC bus architectures where transient spikes demand a wide safety margin. Welding inverters, solar string inverters, and industrial servo drives also benefit from the switching performance and ruggedness of this module. Engineers specifying replacements for aging drive platforms will find the J-series package footprint compatible with a wide range of legacy and current Fuji-based designs.

Quick Reference: 2MBI100J-140

Key Features of the 2MBI100J-140:

• 1400V VCES rating provides robust transient margin for 690VAC line-connected applications
• 100A DC collector current rating supports continuous high-load power conversion duty cycles
• Dual IGBT configuration integrates two switches in one module, reducing BOM complexity and PCB footprint
• Isolated copper baseplate construction enables direct heatsink mounting with low thermal resistance
• J-series optimized gate characteristics deliver low switching losses at medium to high switching frequencies
• Compatible with standard Fuji J-series package footprint for direct retrofit into existing drive and inverter platforms

With a factory lead time of 99 weeks on new production orders, the 2MBI100J-140 represents exactly the kind of long-lead-time component that can halt a repair or delay a production build for nearly two years if not sourced proactively. ATI Accurate Technology maintains independent stocking of hard-to-find and extended lead time IGBTs precisely to bridge this gap. Whether you are servicing a failed drive in the field or building safety stock for a critical fleet of equipment, having a reliable distributor with physical inventory is essential. ATI verifies component authenticity and condition on every unit shipped.

ATI Accurate Technology is located in Palmetto, Florida and specializes in IGBTs, thyristors, diodes, and rectifier modules – including obsolete and hard-to-find parts. Orders received before 5PM EST ship same day. Contact our team for volume pricing, cross-reference assistance, or urgent sourcing support. Call 239-734-7566 or email sales@igbts.us – we're ready to help keep your equipment running.
