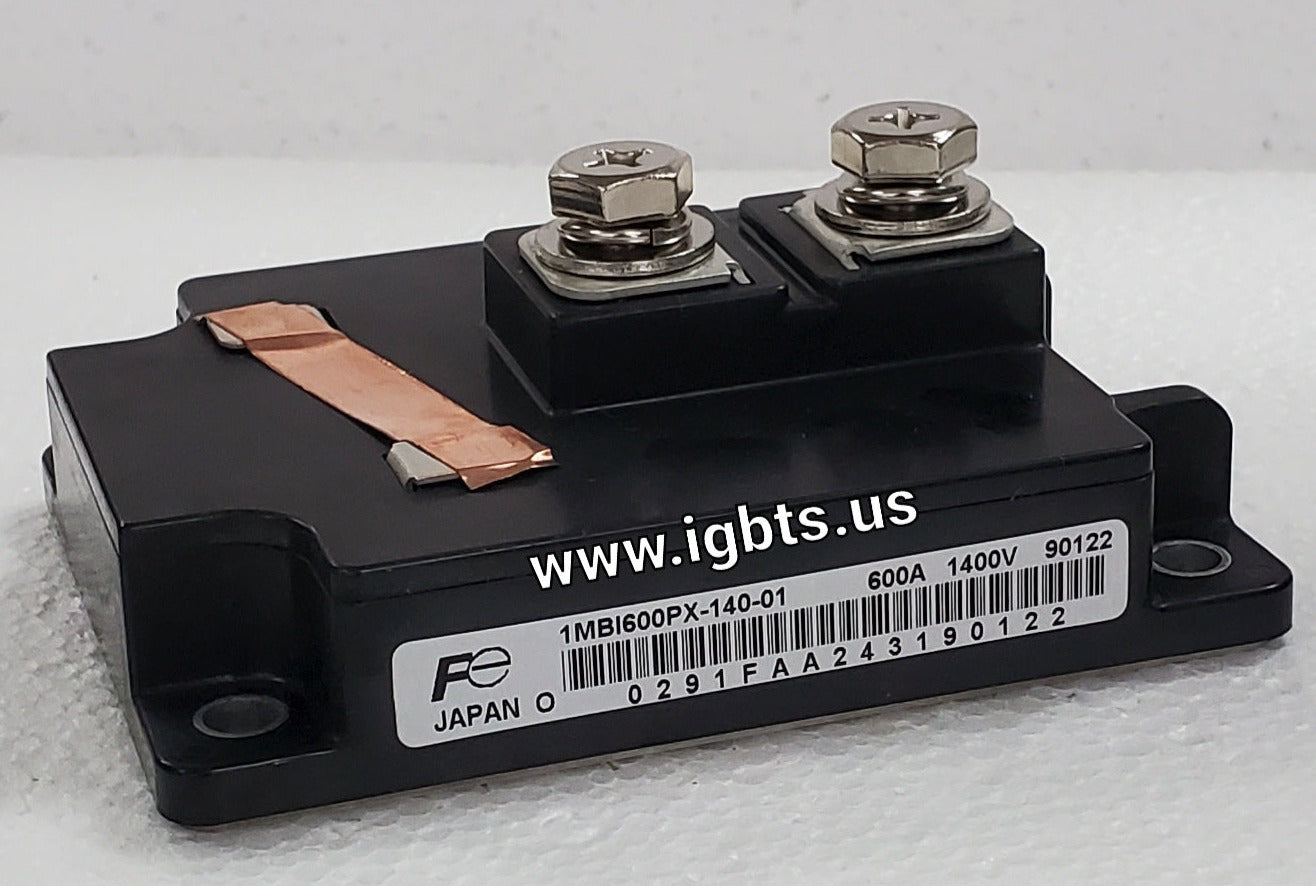

The Fuji 1MBI600PX-140-01 is a sixth-generation PX-series IGBT module rated for 600A continuous collector current and 1400V blocking voltage. Built on Fuji's advanced trench-gate IGBT technology, this module features low V_CE(sat) for reduced conduction losses, a fast soft-recovery freewheeling diode, and an isolated copper baseplate for efficient thermal management. It is designed to meet the rigorous demands of high-power switching circuits where efficiency, reliability, and thermal stability are non-negotiable.

The 1MBI600PX-140-01 is widely deployed in medium-voltage industrial drives, regenerative AC/DC converters, UPS systems, traction inverters, and induction heating equipment. Its 1400V rating provides the voltage headroom required in 690V AC bus topologies and three-level NPC inverter stages. Wind turbine converters, large servo drives, and crane or hoist drive systems also commonly specify this module where high current density and low switching losses directly impact system efficiency and uptime.

Quick Reference: 1MBI600PX-140-01

Key Features of the 1MBI600PX-140-01:

• 600A DC collector current rating with high peak current capability for demanding pulse-load applications
• 1400V V_CES blocking voltage, providing adequate derating margin on 690V AC distribution systems
• Low V_CE(sat) trench-gate IGBT cell structure minimizes conduction losses at full load
• Integrated fast soft-recovery anti-parallel freewheeling diodes reduce EMI and switching stress on gate drive circuits
• Isolated AlN or Al₂O₃ ceramic baseplate for low thermal resistance and electrical isolation to heatsink
• Industry-standard PX-series footprint enables direct form-fit-function replacement in existing drive platforms

With a factory lead time of 99 weeks for new production, the 1MBI600PX-140-01 presents a serious procurement challenge for maintenance teams managing unplanned failures or production planners building safety stock. Extended lead times at this level are common across high-current IGBT modules in the 1200V–1700V class, driven by wafer capacity constraints and low-volume demand. Sourcing from a specialist distributor with verified OEM inventory is often the only practical path to avoiding extended equipment downtime or line stoppages while factory orders remain open.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and rectifier modules including hard-to-find and long-lead-time parts like the 1MBI600PX-140-01. Orders placed before 5PM EST ship same day. Contact our team for real-time stock confirmation, volume pricing, and cross-reference support. Call 239-734-7566 or email sales@igbts.us.
