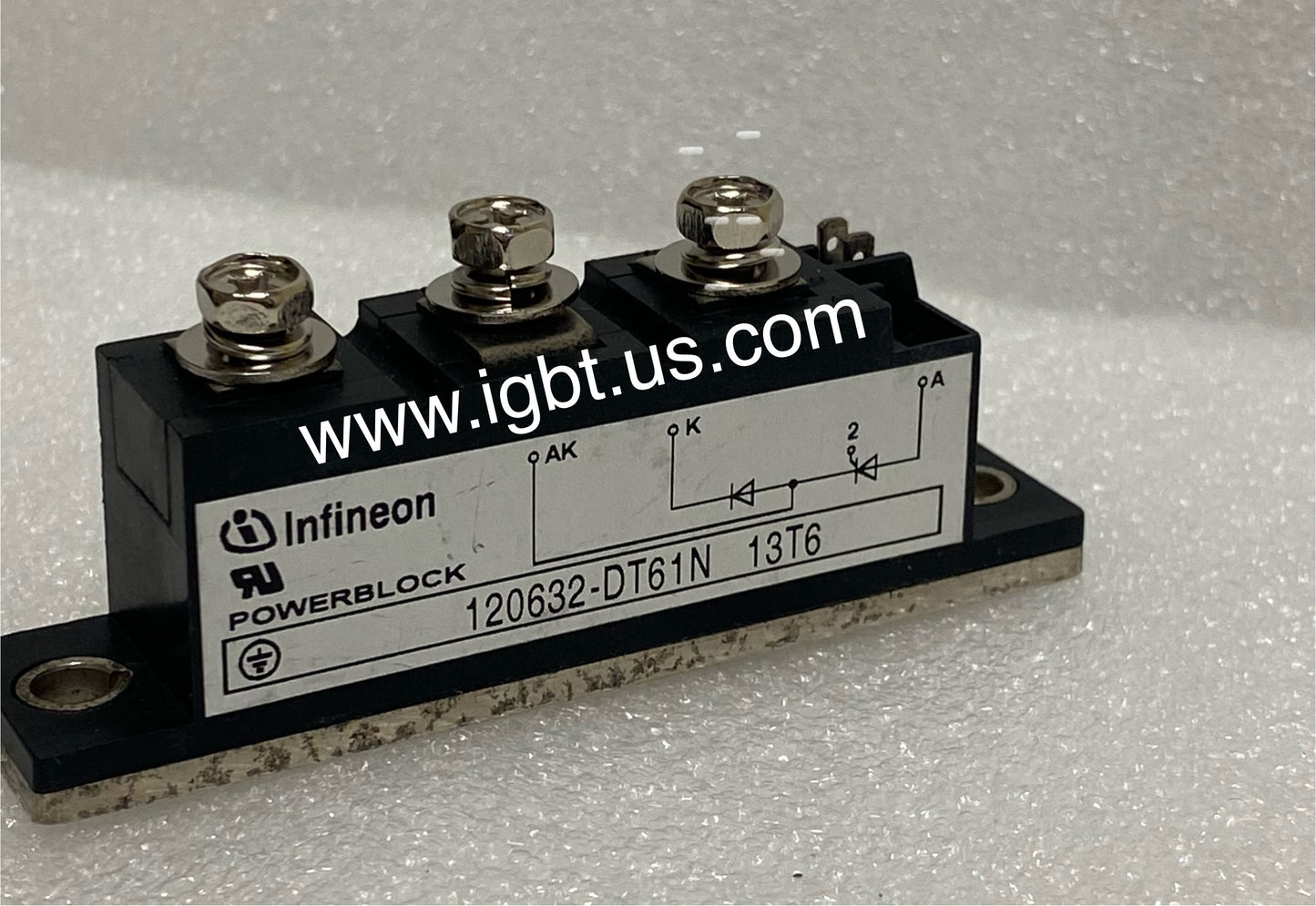

The Infineon 120632-DT61N is a thyristor/diode module engineered for robust performance in demanding power conversion environments. Combining a thyristor and diode in a single compact package, this module simplifies circuit design while delivering reliable switching and rectification in high-current, high-voltage industrial systems. Its construction is consistent with Infineon's established platform for heavy-duty power semiconductor modules, making it a preferred choice for OEM and replacement applications where thermal performance and electrical reliability are non-negotiable.

The 120632-DT61N sees widespread deployment in AC/DC converters, industrial motor drives, crane and hoist controls, traction systems, UPS infrastructure, and DC power supplies for steel mills and mining equipment. Its thyristor/diode topology is well suited for controlled rectifier bridges and half-controlled converter stages where precise phase control and low forward voltage drop are essential to system efficiency. Maintenance engineers replacing failed modules in legacy drive systems frequently specify this part to restore original OEM performance.

Quick Reference: 120632-DT61N

Key Features of the 120632-DT61N:

• Thyristor/diode combination module in a single housing, reducing BOM complexity and mounting footprint in converter assemblies
• Optimized for phase-controlled rectifier and semi-converter topologies common in industrial drive and traction applications
• Low thermal resistance junction-to-case for effective heat transfer in forced-air or liquid-cooled heatsink configurations
• Robust gate trigger characteristics on the thyristor element for reliable firing across the full operating temperature range
• Isolation voltage rating suitable for integration into high-voltage power stacks with demanding creepage and clearance requirements
• Manufactured to Infineon quality standards with traceable lot documentation, supporting MRO and production line requirements

With a current factory lead time of 99 weeks on new production, the 120632-DT61N presents a serious procurement challenge for facilities that cannot afford extended equipment downtime or production stoppages. Legacy systems using Infineon thyristor/diode modules are particularly vulnerable when a field failure occurs and OEM supply chains are exhausted or delayed. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time power semiconductor modules precisely to address these critical sourcing gaps, providing a reliable alternative to waiting out the factory queue.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and rectifier modules including obsolete and long-lead-time parts. The 120632-DT61N ships same-day on orders placed before 5PM EST. Contact our team for volume pricing, cross-references, or application support: call 239-734-7566 or email sales@igbts.us.
