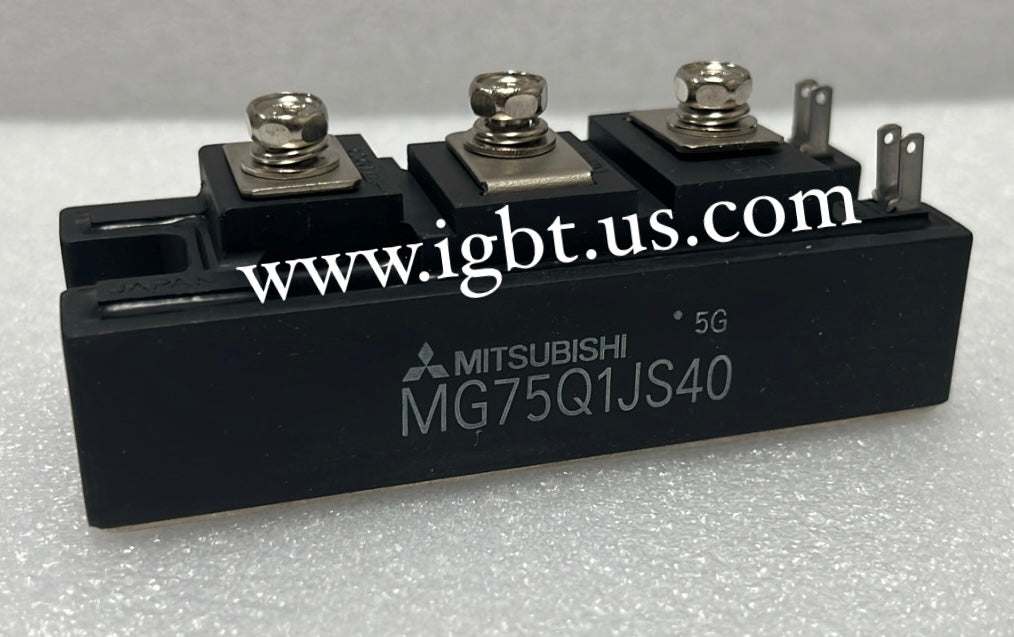

The MG75Q1JS40 is a Mitsubishi Electric IGBT power module rated at 75 amperes and 600 volts, part of the Q-series platform engineered for low-loss, high-frequency switching performance. This module integrates IGBT and free-wheeling diode elements in a compact, industry-standard package, making it well-suited for demanding switching applications where thermal efficiency and gate drive simplicity are priorities. Its robust construction and proven Mitsubishi semiconductor process deliver consistent switching characteristics across a wide operating temperature range, supporting reliable long-term deployment in industrial environments.

The MG75Q1JS40 is widely deployed in AC motor drives, variable frequency drives (VFDs), servo amplifiers, uninterruptible power supplies (UPS), induction heating systems, and industrial inverters operating on 400V-class bus architectures. Its 600V blocking voltage and 75A current rating position it as a workhorse device in mid-power conversion stages where dependable switching and thermal management are critical. OEMs and field engineers frequently specify this module in legacy drive platforms and new designs alike, particularly where standardized footprints and well-characterized gate drive requirements simplify integration and maintenance.

Quick Reference: MG75Q1JS40-MITSUBISHI

Key Features of the MG75Q1JS40-MITSUBISHI:

• 75A collector current and 600V CE voltage rating suited for 400V-class industrial inverter applications
• Integrated anti-parallel free-wheeling diodes for simplified circuit design and reduced external component count
• Low saturation voltage (V_CE(sat)) reduces conduction losses and thermal stress in continuous switching duty
• Industry-standard Q-series package footprint ensures drop-in compatibility with existing drive platforms and PCB layouts
• Optimized switching characteristics for PWM operation in the 2–20 kHz range typical of VFD and servo drive designs
• Isolated base plate construction supports direct heatsink mounting and simplifies thermal interface management

The MG75Q1JS40 has reached end-of-life status through standard distribution channels, creating significant availability challenges for maintenance teams managing legacy drive systems and for OEMs requiring continuity of supply. Long lead times and obsolescence designations from primary channels make sourcing this module difficult through conventional means. ATI Accurate Technology specializes in exactly these situations — maintaining inventory of discontinued, long-lead-time, and hard-to-find power semiconductors to keep production lines running and field repairs moving without costly downtime or forced redesigns.

ATI Accurate Technology is located in Palmetto, Florida, and ships same-day on orders received before 5PM EST. Whether you need a single replacement module or volume quantities for MRO or production, ATI can help. Contact our team for pricing, availability confirmation, and volume discount options. Call 239-734-7566 or email sales@igbts.us — fast, knowledgeable service from specialists who understand power electronics.
