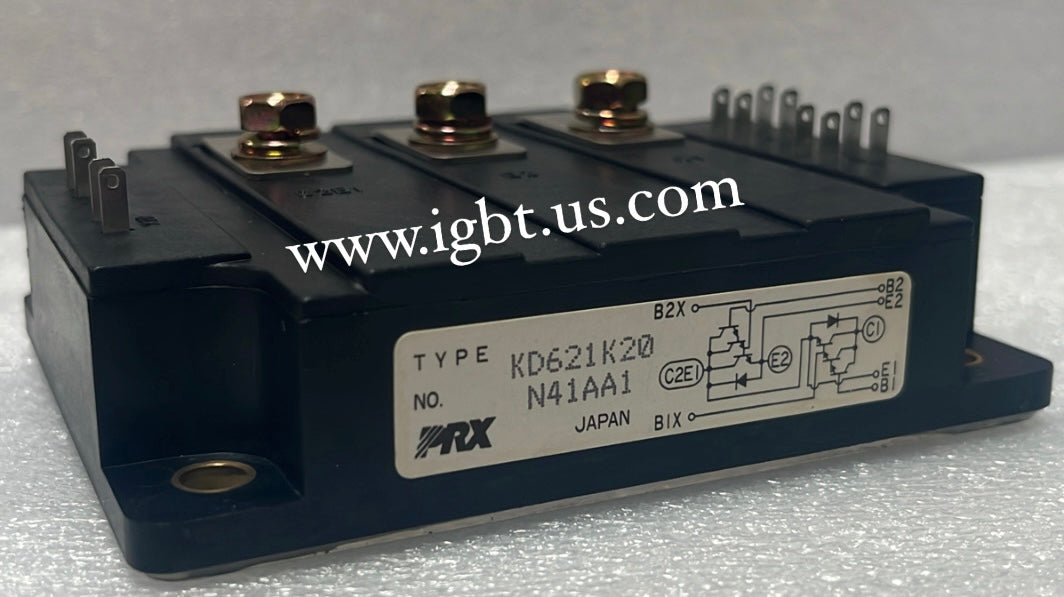

The KD621K20-POWEREX is a Powerex K-series dual IGBT module rated for 200A collector current and 1000V collector-emitter voltage (VCES). Incorporating two discrete IGBT chips in a common isolated baseplate package, this module is engineered for demanding switching environments where efficiency, thermal stability, and rugged short-circuit performance are non-negotiable. Its low VCE(sat) characteristics reduce conduction losses across the full operating range, while the integrated freewheeling diodes simplify circuit design and reduce component count in bridge topologies.

The KD621K20-POWEREX is widely deployed in industrial AC motor drives, medium-voltage inverters, regenerative converters, and three-phase PWM inverter stages. It is equally suited to traction control systems, induction heating equipment, and large-scale UPS installations where reliable high-current switching at kilovolt-class voltages is essential. OEMs and system integrators designing or maintaining variable frequency drives (VFDs) and servo amplifiers in the 50–200kW range will find this module a direct-fit solution within established Powerex K-series drive platforms.

Quick Reference: KD621K20-POWEREX

Key Features of the KD621K20-POWEREX:

• 200A / 1000V ratings support high-power bridge and chopper converter topologies
• Dual IGBT configuration with integrated anti-parallel freewheeling diodes in a single isolated package
• Low VCE(sat) minimizes conduction losses and reduces heatsink thermal requirements
• High short-circuit withstand capability (SCSOA) for enhanced fault tolerance in drive applications
• Isolated copper baseplate construction enables direct mounting to standard heatsinks without additional isolation hardware
• Compatible with established Powerex K-series gate driver circuitry, simplifying maintenance and board-level replacement

Powerex K-series IGBT modules like the KD621K20 have been integral to industrial drive platforms for decades, which means many units in the field are approaching end-of-life or have already been discontinued through standard distribution channels. Lead times from broadline distributors can stretch to 26–52 weeks when availability exists at all. For maintenance engineers keeping legacy VFDs and industrial converters operational, sourcing a verified new OEM replacement quickly is critical to minimizing unplanned downtime. ATI Accurate Technology specializes in exactly this segment — stocking hard-to-find, long-lead-time, and obsolete power semiconductors so your repair cycle is measured in days, not months.

ATI Accurate Technology is located in Palmetto, Florida and ships same-day on orders received before 5PM EST. Whether you need a single replacement module or volume quantities for a stocking program, our team is ready to assist. Contact us at 239-734-7566 or sales@igbts.us for real-time availability, volume pricing, and technical support. We stock IGBTs, thyristors, diodes, and rectifier modules from leading manufacturers.
