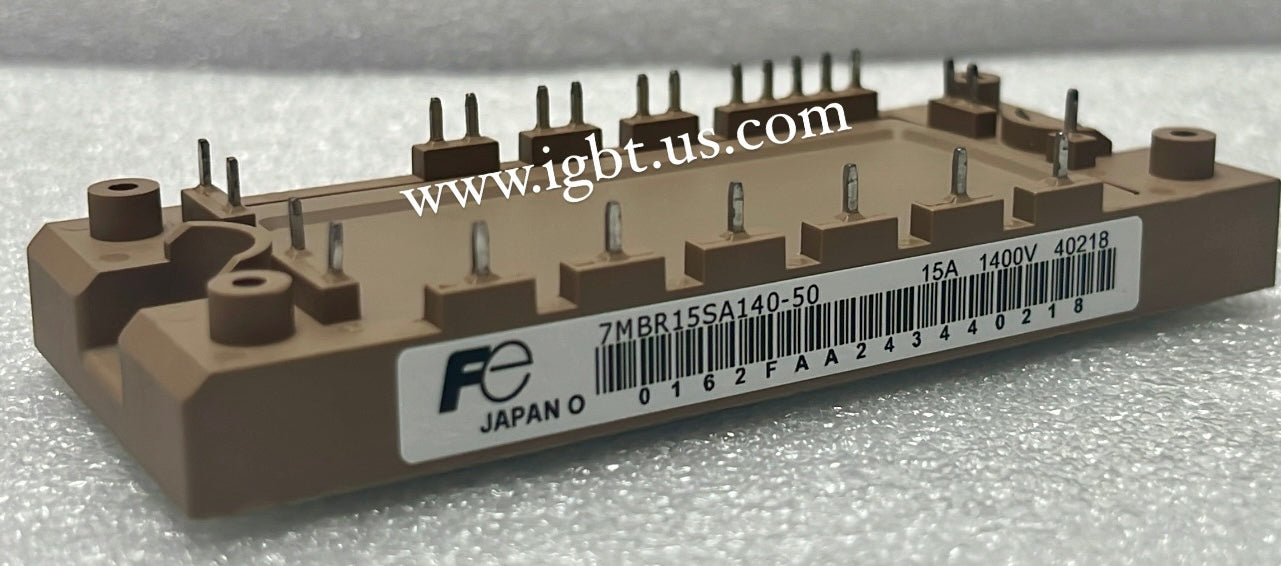

The 7MBR15SA140-50-FUJI is a 7-pack IGBT module rated for 15A continuous collector current and a 1400V collector-emitter voltage, built to the Fuji Electric SA-series platform specification. The 7-in-1 configuration integrates six inverter IGBTs plus a brake chopper transistor into a single isolated baseplate package, simplifying PCB layout and thermal management in compact drive designs. With low saturation voltage (V_CE(sat)) and fast switching characteristics, this module delivers high efficiency and reduced switching losses across the full operating range — a critical requirement in variable-speed drive and servo amplifier topologies.

This module is widely deployed in industrial variable-frequency drives (VFDs), servo amplifiers, CNC spindle inverters, elevator traction drives, and uninterruptible power supply (UPS) systems where a high blocking voltage of 1400V provides the necessary safety margin for 690V AC bus applications. The integrated brake chopper IGBT makes it a natural fit for regenerative braking circuits in crane and hoist controls, conveyors, and HVAC compressor drives. OEM machine builders and MRO teams standardized on Fuji SA-series modules will find the 7MBR15SA140-50-FUJI a direct form, fit, and function solution.

Quick Reference: 7MBR15SA140-50-FUJI

Key Features of the 7MBR15SA140-50-FUJI:

• 1400V V_CES rating provides robust voltage margin for 690V AC three-phase input bus applications
• 15A continuous collector current with a 7-in-1 topology (6 inverter IGBTs + 1 brake chopper) in a single isolated module package
• Low V_CE(sat) and optimized gate charge characteristics reduce conduction and switching losses at typical drive switching frequencies (2–16 kHz)
• Isolated copper baseplate construction enables direct heatsink mounting with controlled thermal resistance, simplifying thermal stack design
• Integrated freewheeling diodes on all IGBT positions eliminate external diode components and reduce parasitic inductance in the commutation loop
• Compatible with standard Fuji SA-series gate drive circuits and pinout, enabling direct drop-in replacement on existing drive platforms

Fuji SA-series IGBT modules at 1400V have reached end-of-life status with many authorized distribution channels, creating extended lead times that can stretch to 26–52 weeks through standard supply chains. For maintenance engineers managing installed bases of older Fuji-based VFDs and servo drives, unplanned downtime waiting on allocation is not acceptable. ATI Accurate Technology maintains strategic inventory of hard-to-find and obsolete power semiconductor modules precisely to close this gap, providing verified new OEM parts when and where the market cannot.

ATI Accurate Technology is located in Palmetto, Florida, and ships same-day on orders confirmed before 5PM EST. Whether you need a single replacement module or volume quantities for a blanket MRO contract, our team provides fast response and competitive pricing. Contact us at 239-734-7566 or sales@igbts.us for availability, datasheets, and volume pricing on the 7MBR15SA140-50-FUJI and related power semiconductor modules.
