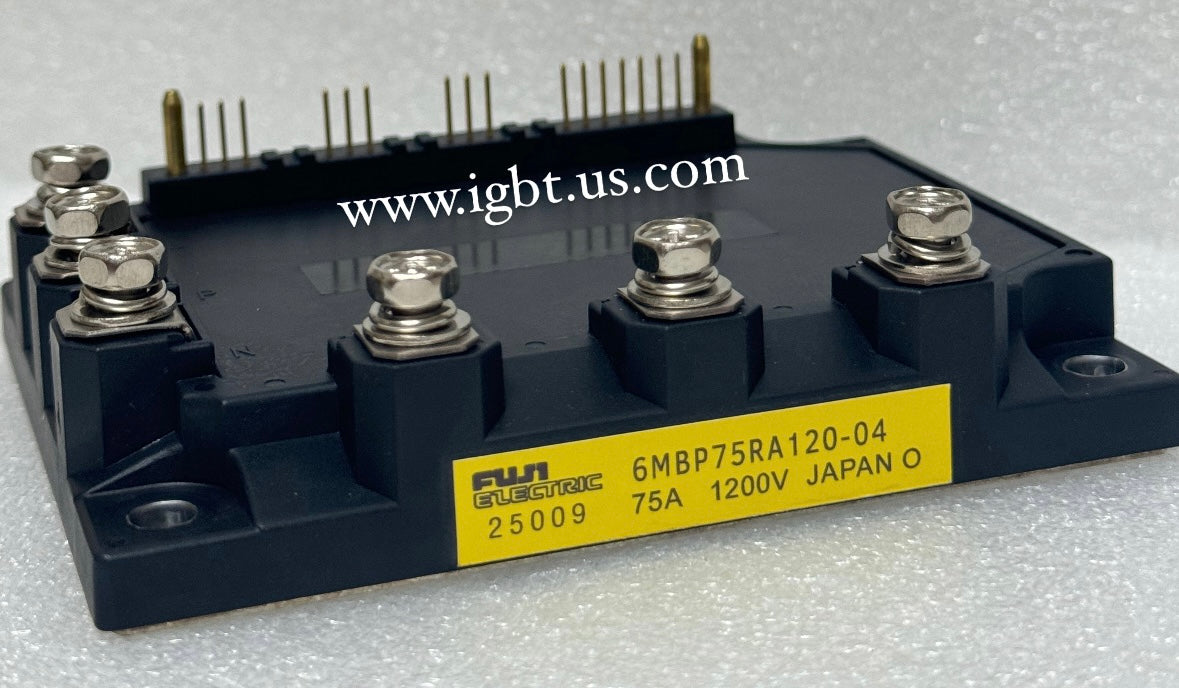

The Fuji 6MBP75RA120-04 is a sixth-generation R-series Intelligent Power Module (IPM) rated at 75A and 1200V. This module integrates six IGBT switches with integrated gate drive circuits, bootstrap power supply circuitry, and comprehensive protection functions — including over-current, short-circuit, under-voltage lockout, and over-temperature shutdown — all within a single, compact transfer-molded package. The built-in fault output simplifies system-level diagnostics and accelerates control board design. It is a direct drop-in form, fit, and function replacement within the established 6MBP RA-series footprint used across multiple Fuji and OEM platforms.

The 6MBP75RA120-04 is widely deployed in industrial AC motor drives, servo amplifiers, uninterruptible power supplies (UPS), and elevator and crane drive systems where reliable, high-efficiency power conversion is mandatory. Its self-protection architecture reduces the external component count on the control board, making it a preferred choice for OEM machine builders and drive repair facilities alike. The module's low-loss IGBT chip technology and optimized freewheeling diodes make it well suited for high-cycle industrial environments where thermal performance and long service life are critical design requirements.

Quick Reference: 6MBP75RA120-04

Key Features of the 6MBP75RA120-04:

• Sixth-generation R-series IGBT chips with reduced switching and conduction losses for improved inverter efficiency
• Fully integrated gate drive circuitry with bootstrap power supply, eliminating the need for isolated gate drive power supplies per switch
• Built-in protection functions: over-current, short-circuit (with 2µs response), under-voltage lockout (UVLO), and over-temperature shutdown
• Open-collector fault output pin enables direct interface to DSP or microcontroller-based control boards without additional signal conditioning
• Transfer-molded package construction provides superior humidity and vibration resistance versus gel-filled modules in harsh industrial environments
• Pin-compatible with predecessor 6MBP RA-series modules, facilitating straightforward field replacement and drive repair workflows

With a current factory lead time of 99 weeks, the 6MBP75RA120-04 presents a serious supply chain challenge for both OEM production lines and field service operations. Extended Fuji IPM lead times have been a persistent issue across the industry, leaving maintenance teams and procurement professionals exposed to extended equipment downtime. Sourcing from a stocking distributor is not a workaround — it is the only practical strategy for keeping production running. ATI Accurate Technology maintains inventory of hard-to-find and long-lead Fuji IPMs specifically to bridge this gap for industrial customers who cannot afford 99-week delays.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, stocking IGBTs, intelligent power modules, thyristors, diodes, and rectifier assemblies — including obsolete and long-lead parts. Orders placed before 5PM EST ship same day. For volume pricing, cross-reference assistance, or immediate availability confirmation on the 6MBP75RA120-04, contact the ATI sales team at 239-734-7566 or sales@igbts.us.
