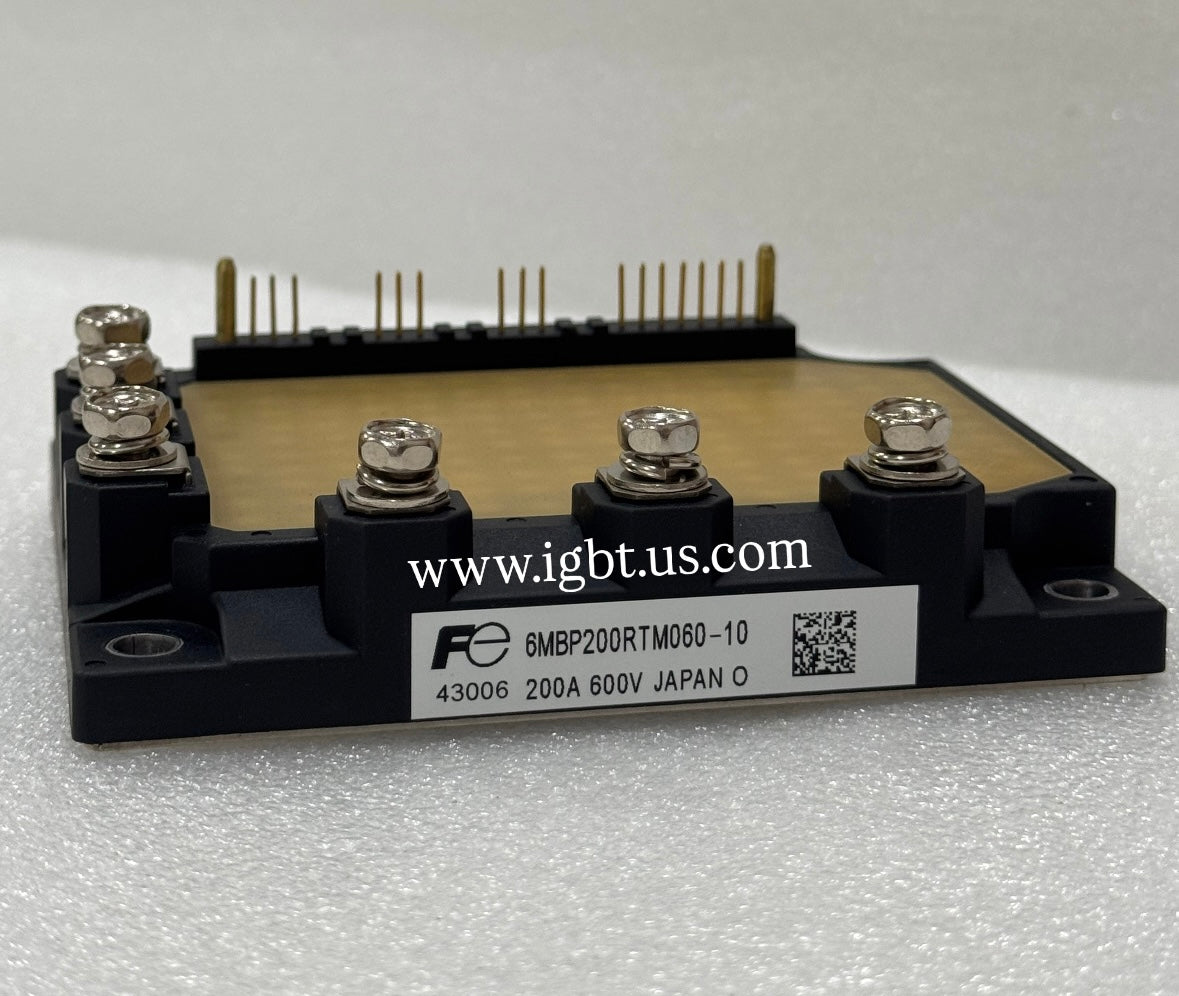

The 6MBP200RTM060-10-FUJI is a 6-pack IGBT module rated at 200A and 600V, designed around Fuji Electric's proven RTM-series architecture. This configuration integrates six IGBT switches with co-packaged freewheeling diodes into a single module, enabling a complete three-phase inverter bridge in a compact, thermally efficient footprint. The RTM-series platform is recognized for low saturation voltage (V_CE(sat)), fast switching characteristics, and robust short-circuit withstand capability, making it a dependable choice for engineers designing or maintaining high-power conversion equipment where reliability under continuous load is non-negotiable.

This module is widely deployed across industrial and commercial power conversion platforms. Common applications include AC variable frequency drives (VFDs) controlling motors in pumping, HVAC, compressor, and conveyor systems, as well as servo drive amplifiers in CNC machinery and robotics. It is also found in three-phase UPS inverter stages, induction heating systems, and regenerative braking circuits in crane and elevator drives. The 200A current rating and 600V blocking voltage suit it well for low- to medium-voltage motor drive architectures operating from standard 380–480VAC industrial supply rails.

Quick Reference: 6MBP200RTM060-10-FUJI

Key Features of the 6MBP200RTM060-10-FUJI:

• 6-pack full-bridge topology integrates six IGBTs and six freewheeling diodes, eliminating the need for discrete switch assembly in three-phase inverter designs
• 600V VCES blocking voltage with 200A continuous collector current rating, optimized for 380–480VAC industrial drive applications
• Low V_CE(sat) characteristic reduces conduction losses and thermal stress under continuous duty operation
• Integrated gate-emitter resistors and optimized internal layout minimize parasitic inductance and support stable high-frequency switching performance
• Industry-standard module footprint and pin configuration simplifies direct replacement in Fuji-based drive platforms without PCB modification
• Built-in thermal baseplate designed for direct mounting to heatsink or cold plate, supporting efficient system-level thermal management

The 6MBP200RTM060-10-FUJI is a mature Fuji RTM-series part that has reached end-of-life or long-lead-time status through standard distribution channels, making field replacements and MRO replenishment increasingly difficult. Drive OEMs no longer manufacturing this platform have exhausted factory spare stock, leaving maintenance teams exposed to extended downtime when a module fails. ATI Accurate Technology specializes in sourcing exactly these hard-to-find, obsolete, and long-lead-time power semiconductors, maintaining verified OEM inventory to support ongoing service needs across legacy drive fleets.

ATI Accurate Technology is located in Palmetto, Florida and ships same-day on orders received before 5PM EST. Whether you need a single replacement module or volume quantity for MRO stocking, ATI offers competitive pricing and responsive service. Contact our team directly at 239-734-7566 or sales@igbts.us for availability confirmation, volume pricing, and technical support.
